063210-E

Product Detailed Parameters

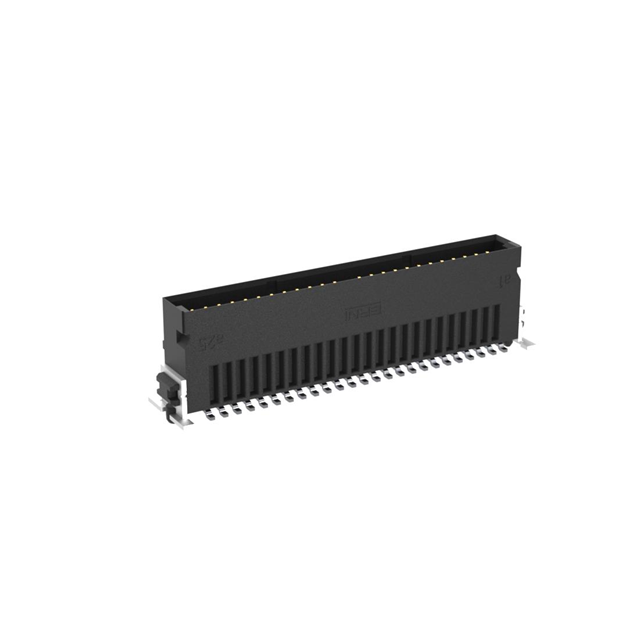

• Description：SMC M VERT Q 50POS SMT 3.25MM
• Series：SMC
• Mfr：TE Connectivity Erni
• Package：Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.050" (1.27mm)
• Number of Positions：50
• Number of Rows：2
• Row Spacing - Mating：0.050" (1.27mm)
• Number of Positions Loaded：All
• Style：Board to Board
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：-
• Contact Length - Post：-
• Overall Contact Length：-
• Insulation Height：-
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：-
• Contact Finish - Post：Tin
• Contact Material：-
• Insulation Material：-
• Features：Board Lock
• Operating Temperature：-
• Ingress Protection：-
• Material Flammability Rating：-
• Insulation Color：-
• Current Rating (Amps)：1.7A per Contact
• Voltage Rating：-
