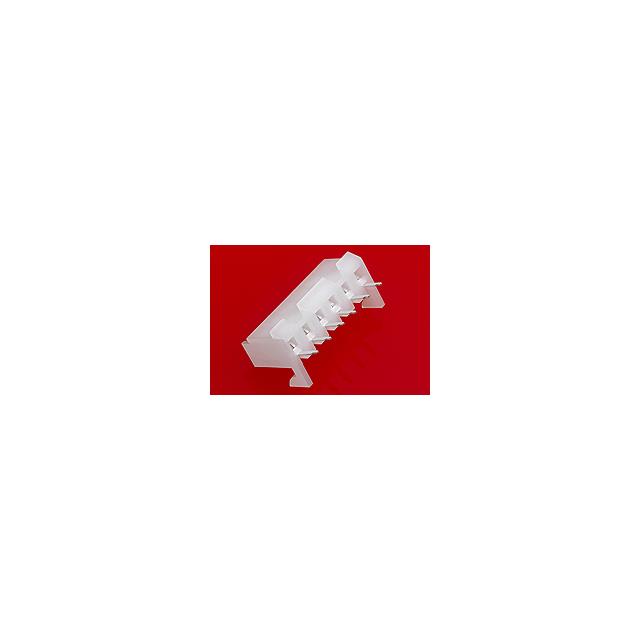

09623102P

09623102P

  • Description：KK 396 PC BOARD CONNECTOR, BOTTO
  • Series：2145
  • Mfr：Molex
  • Package：Box

SKU:d88a121e009c Category: Brand:

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：839314116@qq.com
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

*
*
*
Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

Product Detailed Parameters

  • Description：KK 396 PC BOARD CONNECTOR, BOTTO
  • Series：2145
  • Mfr：Molex
  • Package：Box
  • Connector Type：Receptacle, Bottom Entry
  • Contact Type：Female Socket
  • Style：Board to Board or Cable
  • Number of Positions：10
  • Number of Positions Loaded：All
  • Pitch - Mating：0.156" (3.96mm)
  • Number of Rows：1
  • Row Spacing - Mating：-
  • Mounting Type：Through Hole
  • Termination：Solder
  • Fastening Type：Locking Ramp
  • Contact Finish - Mating：Gold
  • Contact Finish Thickness - Mating：15.0µin (0.38µm)
  • Insulation Color：White
  • Insulation Height：0.449" (11.40mm)
  • Contact Length - Post：0.160" (4.06mm)
  • Operating Temperature：0°C ~ 75°C
  • Material Flammability Rating：UL94 V-2
  • Contact Finish - Post：Tin
  • Mated Stacking Heights：5mm
  • Ingress Protection：-
  • Features：-
  • Current Rating (Amps)：5A
  • Voltage Rating：250V

Download product information
