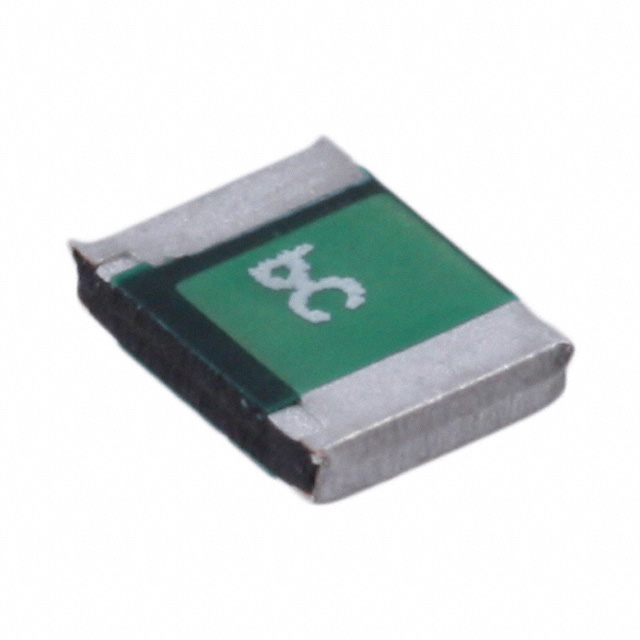

0ZCB0050FF2G

Product Detailed Parameters

• Description：PTC RESET FUSE 16V 500MA 1210
• Series：0ZCB
• Mfr：Bel Fuse Inc.
• Package：Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
• Type：Polymeric
• Voltage - Max：16V
• Current - Hold (Ih) (Max)：500 mA
• Current - Trip (It)：1:00 AM
• Current - Max：40 A
• Time to Trip：100 ms
• Resistance - Initial (Ri) (Min)：250 mOhms
• Resistance - Post Trip (R1) (Max)：900 mOhms
• Resistance - 25°C (Typ)：-
• Operating Temperature：-40°C ~ 85°C
• Grade：-
• Qualification：-
• Ratings：-
• Mounting Type：Surface Mount
• Package / Case：1210 (3225 Metric)
• Size / Dimension：0.127" L x 0.102" W (3.22mm x 2.58mm)
• Height - Seated (Max)：-
• Thickness (Max)：0.030" (0.75mm)
• Lead Spacing：-
