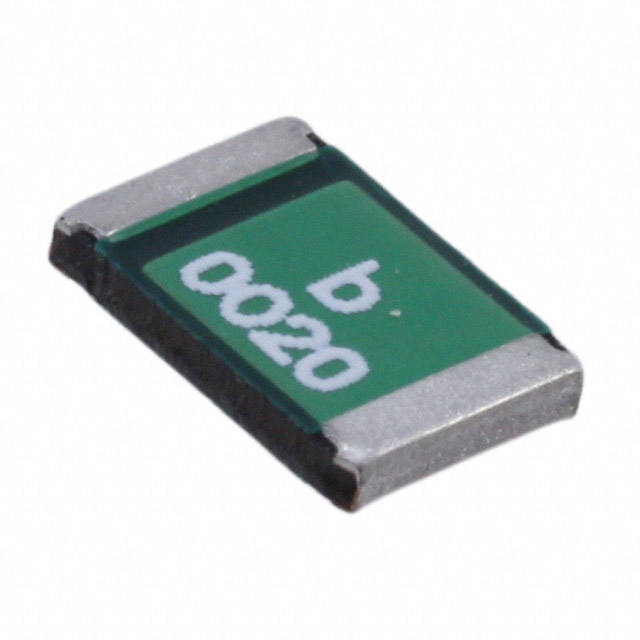

0ZCC0020FF2C

Product Detailed Parameters

• Description：PTC RESET FUSE 30V 200MA 1812
• Series：0ZCC
• Mfr：Bel Fuse Inc.
• Package：Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
• Type：Polymeric
• Voltage - Max：30V
• Current - Hold (Ih) (Max)：200 mA
• Current - Trip (It)：400 mA
• Current - Max：40 A
• Time to Trip：20 ms
• Resistance - Initial (Ri) (Min)：800 mOhms
• Resistance - Post Trip (R1) (Max)：5 Ohms
• Resistance - 25°C (Typ)：-
• Operating Temperature：-40°C ~ 85°C
• Grade：-
• Qualification：-
• Ratings：-
• Mounting Type：Surface Mount
• Package / Case：1812 (4532 Metric)
• Size / Dimension：0.179" L x 0.128" W (4.55mm x 3.24mm)
• Height - Seated (Max)：-
• Thickness (Max)：0.035" (0.90mm)
• Lead Spacing：-
