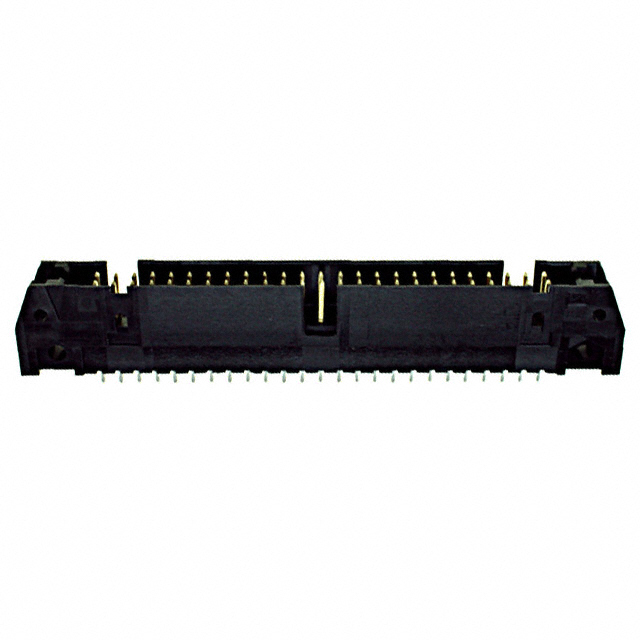

1-102153-0

Product Detailed Parameters

• Description：CONN HEADER VERT 50POS 2.54MM
• Series：AMP-Latch
• Mfr：TE Connectivity AMP Connectors
• Package：Tray,Tray
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：50
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.240" (6.10mm)
• Contact Length - Post：0.110" (2.79mm)
• Overall Contact Length：0.639" (16.23mm)
• Insulation Height：0.549" (13.94mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold or Gold-Palladium
• Contact Finish Thickness - Mating：15.0µin (0.38µm)
• Contact Finish - Post：Tin-Lead
• Contact Material：-
• Insulation Material：-
• Features：Mounting Flange
• Operating Temperature：-55°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：1A per Contact
• Voltage Rating：-
