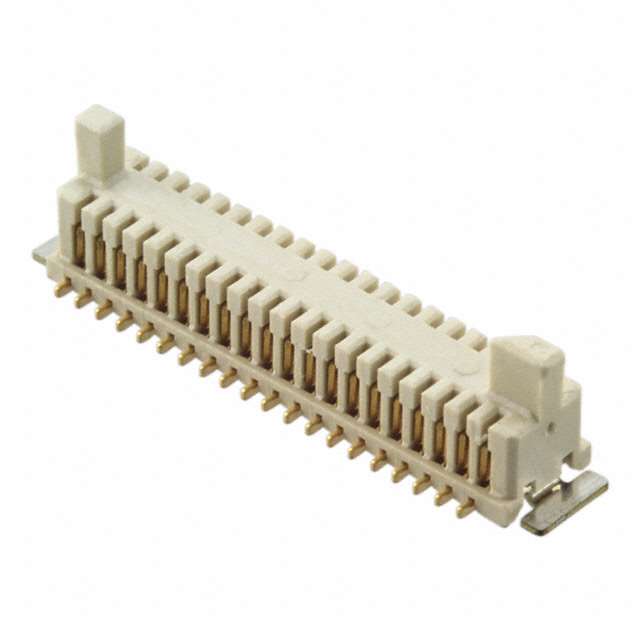

1-1375870-8

Product Detailed Parameters

• Description：CONN RCPT 40POS 0.031 GOLD SMD
• Series：AMPMODU Micro
• Mfr：TE Connectivity AMP Connectors
• Package：Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Receptacle
• Contact Type：Female Blade Socket
• Style：Board to Cable/Wire
• Number of Positions：40
• Number of Positions Loaded：All
• Pitch - Mating：0.031" (0.80mm)
• Number of Rows：2
• Row Spacing - Mating：-
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Friction Lock
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：30.0µin (0.76µm)
• Insulation Color：Natural
• Insulation Height：0.197" (5.00mm)
• Contact Length - Post：-
• Operating Temperature：-55°C ~ 85°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Gold
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Solder Retention
• Current Rating (Amps)：-
• Voltage Rating：30VAC
