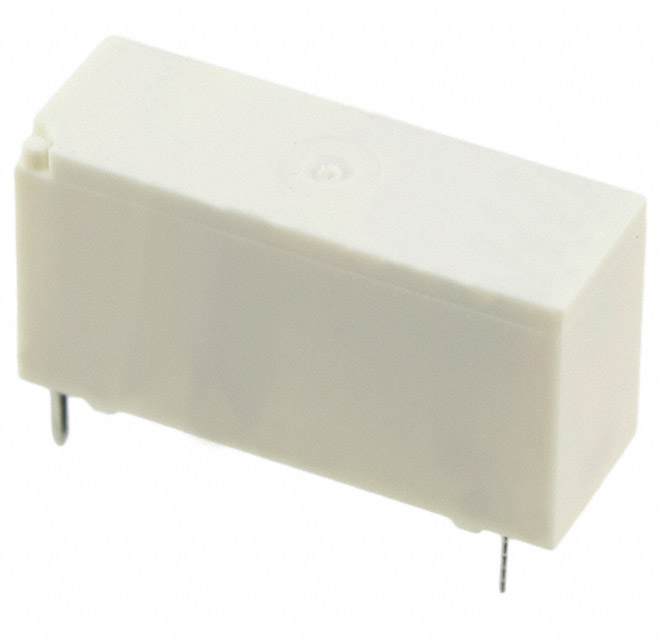

1-1393222-6

1-1393222-6

  • Description:RELAY GEN PURPOSE SPST 8A 9V
  • Series:MSR, SCHRACK
  • Mfr:TE Connectivity Potter & Brumfield Relays
  • Package:Tube

SKU:c2f4366f60c1 Category: Brand:

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline:86-132-6715-2157

email:chipapexlimited@gmail.com
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

*
*
*
*
Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

Product Detailed Parameters

  • Description:RELAY GEN PURPOSE SPST 8A 9V
  • Series:MSR, SCHRACK
  • Mfr:TE Connectivity Potter & Brumfield Relays
  • Package:Tube
  • Mounting Type:Through Hole
  • Coil Voltage:9VDC
  • Contact Form:SPST-NO (1 Form A)
  • Contact Rating (Current):8:00 AM
  • Switching Voltage:400VAC - Max
  • Load - Max Switching:3200VA
  • Coil Current:24.7 mA
  • Coil Type:Non Latching
  • Features:-
  • Termination Style:PC Pin
  • Seal Rating:Sealed - Fully
  • Coil Insulation:Class A
  • Must Operate Voltage:6.1 VDC
  • Must Release Voltage:0.9 VDC
  • Operating Temperature:-40°C ~ 85°C
  • Contact Material:Silver Cadmium Oxide (AgCdO)
  • Approval Agency:cURus, VDE
  • Relay Type:General Purpose
  • Grade:-
  • Qualification:-
  • Operate Time:10 ms
  • Release Time:5 ms

Download product information

1-1393222-6

Buying Guide
Summary

TE Connectivity Potter & Brumfield Relays 1-1393222-6 is evaluated in Power Relays, Over 2 Amps category where failure modes and qualification evidence matter as much as headline ratings. Key specs include Description (RELAY GEN PURPOSE SPST 8A 9V), Temperature (-40°C ~ 85°C), Mounting (Through Hole), and Packaging (Tube).

Selection Notes
  • For 1-1393222-6, make sure Relay Type (General Purpose) aligns with your design targets and verification plan.
  • Confirm the mounting type (Through Hole) is suitable for your production flow and reliability target.
  • Check the supply current (24.7 mA) in your power budget and thermal plan.
  • Validate the operating temperature range (-40°C ~ 85°C) for your environment and margin.
Alternates & Substitutions
  • In Power Relays, Over 2 Amps, confirm that alternates preserve startup states and fault behavior so system behavior does not change quietly.
  • Then confirm the operating envelope (temperature -40°C ~ 85°C) with margin for transients and derating.
  • For substitutions, match the footprint-related items first: mounting Through Hole, packaging Tube.
  • For relays/switches, match contact form SPST-NO (1 Form A), coil 9VDC, contact rating 8:00 AM and derate for inductive loads and inrush current.
FAQ

What details help you quote 1-1393222-6 quickly?
Provide the part number (1-1393222-6), quantity, required lead time, and any packaging or documentation requirements.

Who is the manufacturer of 1-1393222-6?
TE Connectivity Potter & Brumfield Relays

What temperature range is listed for 1-1393222-6?
-40°C ~ 85°C

What Coil Type does 1-1393222-6 have?
Non Latching

Application Scenarios

In practice, selecting TE Connectivity Potter & Brumfield Relays 1-1393222-6 for Power Relays, Over 2 Amps usually comes down to meeting the system constraints that matter most: limits, interfaces, and testability in the real build. A robust switching choice reduces intermittent issues by staying stable under contamination, vibration, and repetitive surges. Engineers often prioritize testability and clear failure behavior so service diagnostics remain straightforward. In practice, with a clear test plan, it becomes easier to manage sourcing changes without re-introducing hidden corner cases. In field equipment, sealing and contact materials determine long-term reliability under dust and moisture. In real deployments, across industrial panels, switches and relays handle interlocks and actuator control in dusty environments with vibration. In automotive modules, compact switching manages pumps and heaters while handling inductive loads and transients. Done well, it strengthens robustness by aligning electrical, thermal, and mechanical constraints with the deployment environment.

Compatibility Advice
  • In practice, coordinate switching and protection so fault cases fail safe rather than creating nuisance trips or unsafe states before committing to volume builds.
  • In practice, coordinate switching and protection so fault cases fail safe rather than creating nuisance trips or unsafe states with the final enclosure and cabling.
Project Fit
  • Most suitable when you can verify TE Connectivity Potter & Brumfield Relays 1-1393222-6 for Power Relays, Over 2 Amps integration under realistic load and noise, when you need deterministic behavior in safety, interlock, or control paths.
1-1393222-61-1393222-6
