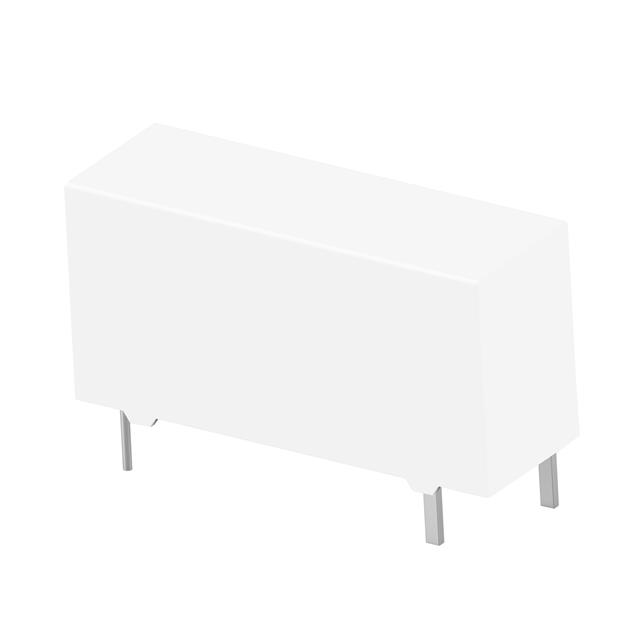

  • Description:RELAY GEN PURPOSE SPDT 8A 18V
  • Series:MSR, SCHRACK
  • Mfr:TE Connectivity Potter & Brumfield Relays
  • Package:Tube

SKU:2053ee4afdab Category: Brand:

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline:86-132-6715-2157

email:chipapexlimited@gmail.com
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

*
*
*
*
Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

Product Detailed Parameters

  • Description:RELAY GEN PURPOSE SPDT 8A 18V
  • Series:MSR, SCHRACK
  • Mfr:TE Connectivity Potter & Brumfield Relays
  • Package:Tube
  • Mounting Type:Through Hole
  • Coil Voltage:18VDC
  • Contact Form:SPDT (1 Form C)
  • Contact Rating (Current):8:00 AM
  • Switching Voltage:400VAC - Max
  • Load - Max Switching:3200VA
  • Coil Current:12.4 mA
  • Coil Type:Non Latching
  • Features:-
  • Termination Style:PC Pin
  • Seal Rating:Sealed - Fully
  • Coil Insulation:Class A
  • Must Operate Voltage:12.2 VDC
  • Must Release Voltage:1.8 VDC
  • Operating Temperature:-40°C ~ 85°C
  • Contact Material:Silver Nickel (AgNi)
  • Approval Agency:cURus, VDE
  • Relay Type:General Purpose
  • Grade:-
  • Qualification:-
  • Operate Time:10 ms
  • Release Time:5 ms
