1-1393315-1

1-1393315-1

$72.34

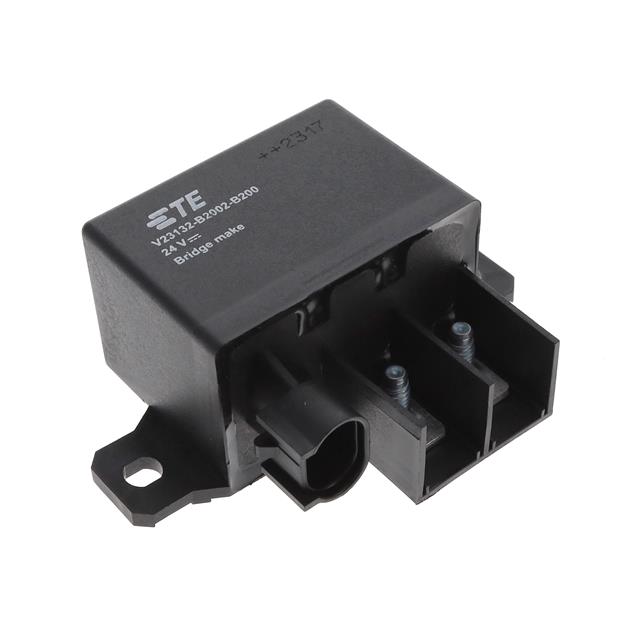

  • Description：V23132B2002B200=HCR
  • Series：High Current Relay 150
  • Mfr：TE Connectivity AMP Connectors
  • Package：Box

SKU:1680563ac981 Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：chipapexlimited@gmail.com
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

*
*
*
*
Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

Product Detailed Parameters

  • Description：V23132B2002B200=HCR
  • Series：High Current Relay 150
  • Mfr：TE Connectivity AMP Connectors
  • Package：Box
  • Coil Type：Non Latching
  • Coil Current：170.2 mA
  • Coil Voltage：24VDC
  • Contact Form：SPST-NO (DM) (1 Form X)
  • Contact Rating (Current)：130 A
  • Switching Voltage：24VDC - Nom
  • Must Operate Voltage：14.4 VDC
  • Must Release Voltage：2.4 VDC
  • Operate Time：25 ms
  • Release Time：8 ms
  • Features：IP67 - Dust Tight, Waterproof
  • Mounting Type：Chassis Mount
  • Termination Style：Screw Terminal
  • Operating Temperature：-40°C ~ 125°C

Download product information
