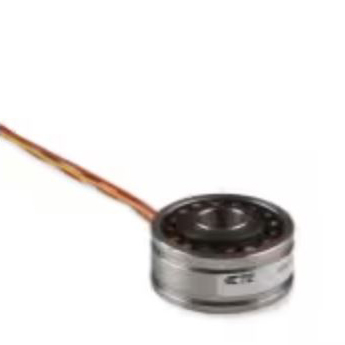

1-1414631-0

Product Detailed Parameters

• Description：RESOLVER V23401-S1001-B101
• Series：-
• Mfr：TE Connectivity AMP Connectors
• Package：Box
• For Measuring：Angle
• Technology：-
• Rotation Angle - Electrical, Mechanical：0° ~ 20°
• Linear Range：-
• Output：-
• Output Signal：-
• Actuator Type：-
• Linearity：-
• Resistance：82 Ohms
• Resistance Tolerance：±10%
• Voltage - Supply：-
• Mounting Type：Chassis Mount
• Termination Style：Ring, Wire Leads
• Operating Temperature：-55°C ~ 150°C
• Package / Case：Module
• Supplier Device Package：-
• Grade：-
• Qualification：-
