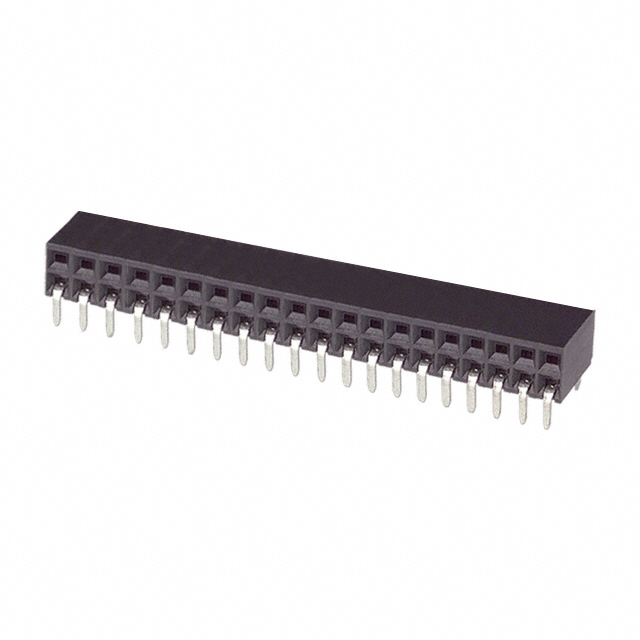

1-146140-9

Product Detailed Parameters

• Description：CONN RCPT 40POS 0.1 GOLD PCB R/A
• Series：AMPMODU Mod II
• Mfr：TE Connectivity AMP Connectors
• Package：Tube,Tube
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：-
• Number of Positions：40
• Number of Positions Loaded：All
• Pitch - Mating：0.100" (2.54mm)
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：10.0µin (0.25µm)
• Insulation Color：Black
• Insulation Height：0.238" (6.05mm)
• Contact Length - Post：0.115" (2.92mm)
• Operating Temperature：-55°C ~ 125°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin-Lead
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：2A
• Voltage Rating：-
