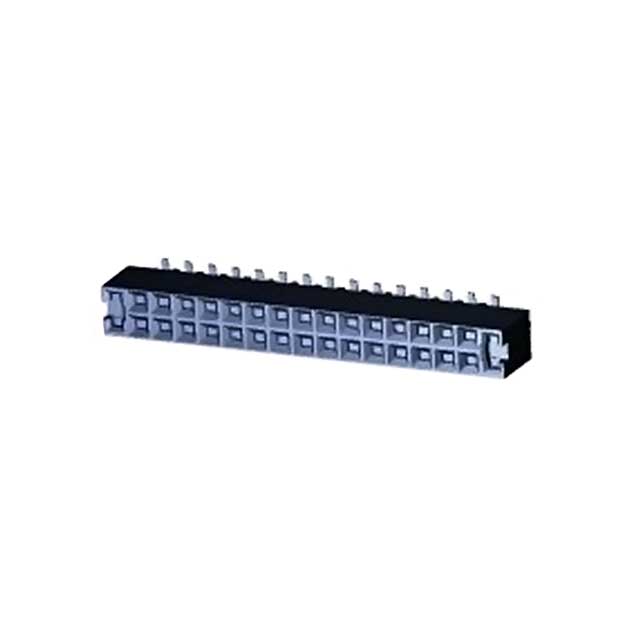

1-147102-5

Product Detailed Parameters

• Description：CONN RCPT 30POS 0.1 GOLD SMD
• Series：AMPMODU Mod IV
• Mfr：TE Connectivity AMP Connectors
• Package：Tube,Tube
• Connector Type：Receptacle, Bottom or Top Entry
• Contact Type：Female Socket
• Style：Board to Board or Cable
• Number of Positions：30
• Number of Positions Loaded：All
• Pitch - Mating：0.100" (2.54mm)
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：30.0µin (0.76µm)
• Insulation Color：Black
• Insulation Height：0.265" (6.73mm)
• Contact Length - Post：-
• Operating Temperature：-65°C ~ 125°C
• Material Flammability Rating：-
• Contact Finish - Post：Tin-Lead
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Board Lock, Pick and Place
• Current Rating (Amps)：2A
• Voltage Rating：-
