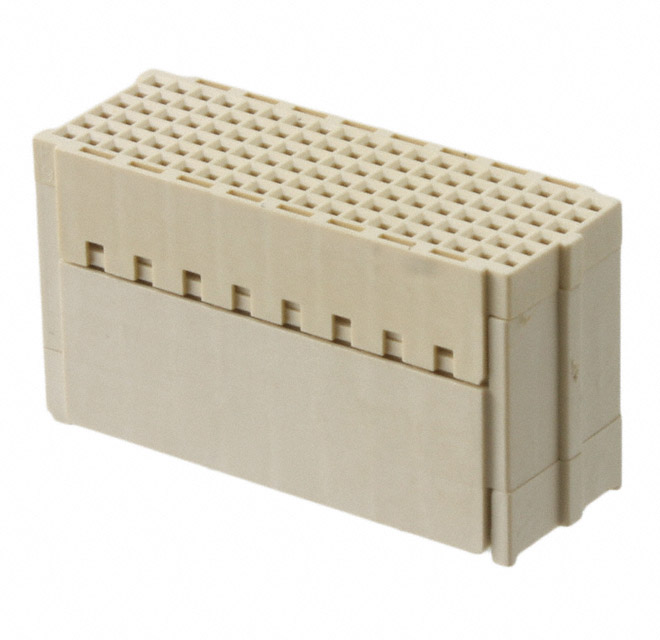

1-2102061-2

Product Detailed Parameters

• Description：CONN RCPT 114POS 0.05 GOLD SMD
• Series：Mezalok, VITA 61
• Mfr：TE Connectivity Aerospace, Defense and Marine
• Package：Tape & Reel (TR)
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：114
• Number of Positions Loaded：All
• Pitch - Mating：0.050" (1.27mm)
• Number of Rows：6
• Row Spacing - Mating：0.050" (1.27mm)
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：30.0µin (0.76µm)
• Insulation Color：Natural
• Insulation Height：0.551" (14.00mm)
• Contact Length - Post：-
• Operating Temperature：-55°C ~ 125°C
• Material Flammability Rating：-
• Contact Finish - Post：Tin
• Mated Stacking Heights：18mm
• Ingress Protection：-
• Features：Pick and Place
• Current Rating (Amps)：-
• Voltage Rating：250VAC
