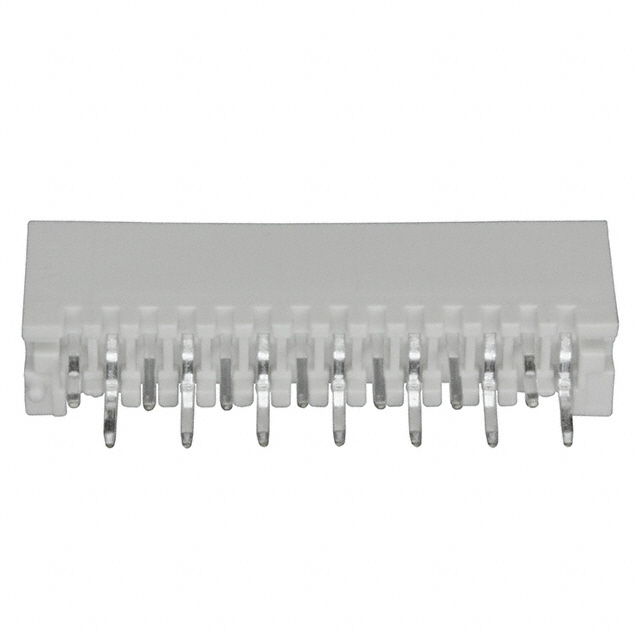

1-292207-4

Product Detailed Parameters

• Description：CONN HEADER VERT 14POS 1.5MM
• Series：Mini CT
• Mfr：TE Connectivity
• Package：Bulk
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.059" (1.50mm)
• Number of Positions：14
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Through Hole
• Termination：Kinked Pin, Solder
• Fastening Type：Detent Lock
• Contact Length - Mating：0.094" (2.40mm)
• Contact Length - Post：0.118" (3.00mm)
• Overall Contact Length：0.307" (7.80mm)
• Insulation Height：0.272" (6.91mm)
• Contact Shape：Square
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：39.4µin (1.00µm)
• Contact Finish - Post：Tin
• Contact Material：Brass
• Insulation Material：Polyamide (PA), Nylon, Glass Filled
• Features：Board Guide
• Operating Temperature：-30°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Gray
• Current Rating (Amps)：Varies by Wire Gauge
• Voltage Rating：50VAC
