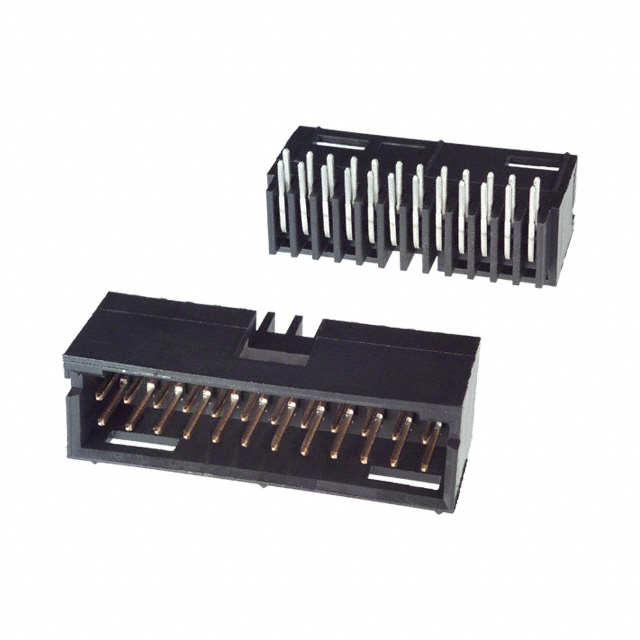

103167-9

Product Detailed Parameters

• Description：CONN HEADER R/A 24POS 2.54MM
• Series：AMPMODU Mod II
• Mfr：TE Connectivity AMP Connectors
• Package：Tray
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：24
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Number of Positions Loaded：All
• Style：Board to Board or Cable
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Detent Lock
• Contact Length - Mating：0.318" (8.08mm)
• Contact Length - Post：0.135" (3.43mm)
• Overall Contact Length：-
• Insulation Height：0.400" (10.16mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：30.0µin (0.76µm)
• Contact Finish - Post：Tin-Lead
• Contact Material：Phosphor Bronze
• Insulation Material：Thermoplastic
• Features：-
• Operating Temperature：-65°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：3A
• Voltage Rating：-
