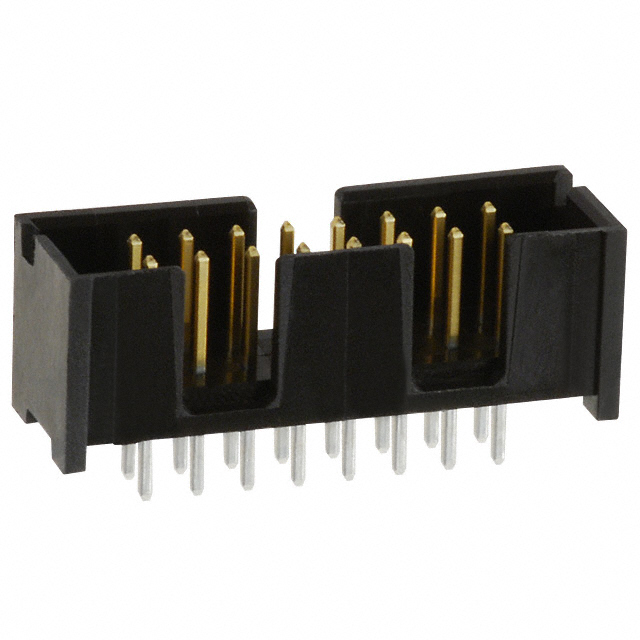

103309-3

103309-3

$2.80
  • Description：CONN HEADER VERT 16POS 2.54MM
  • Series：AMP-Latch
  • Mfr：TE Connectivity AMP Connectors
  • Package：Tube

SKU:86845a9642b0 Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：chipapexlimited@gmail.com
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

*
*
*
*
Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

Product Detailed Parameters

  • Description：CONN HEADER VERT 16POS 2.54MM
  • Series：AMP-Latch
  • Mfr：TE Connectivity AMP Connectors
  • Package：Tube
  • Connector Type：Header
  • Contact Type：Male Pin
  • Pitch - Mating：0.100" (2.54mm)
  • Number of Positions：16
  • Number of Rows：2
  • Row Spacing - Mating：0.100" (2.54mm)
  • Number of Positions Loaded：All
  • Style：Board to Cable/Wire
  • Shrouding：Shrouded - 4 Wall
  • Mounting Type：Through Hole
  • Termination：Solder
  • Fastening Type：Push-Pull
  • Contact Length - Mating：0.240" (6.10mm)
  • Contact Length - Post：0.120" (3.05mm)
  • Overall Contact Length：-
  • Insulation Height：0.388" (9.86mm)
  • Contact Shape：Square
  • Contact Finish - Mating：Gold or Gold-Palladium
  • Contact Finish Thickness - Mating：30.0µin (0.76µm)
  • Contact Finish - Post：Tin-Lead
  • Contact Material：Brass
  • Insulation Material：-
  • Features：Keying Slot
  • Operating Temperature：-65°C ~ 105°C
  • Ingress Protection：-
  • Material Flammability Rating：UL94 V-0
  • Insulation Color：Black
  • Current Rating (Amps)：1A per Contact
  • Voltage Rating：-

Download product information

103309-3

How to buy
Online and offline orders are supported. If the item is available for online purchase, you can place it in the cart; for wholesale pricing, please contact our product manager for a quote.
Payment Method
Payment methods: T/T, WeChat Pay, credit cards, Google Pay, Apple Pay . Buyer covers shipping, fees, duties, and taxes; contact our product manager if you need a contract/procurement process.
Delivery time
In-stock items usually ship within 24 hours. Otherwise, shipment is arranged 1 to 2 days after the items arrive at our warehouse. Timing depends on destination and shipping method.
Freight calculation
Freight cost depends on destination, package size, and weight . We offer shipping options via DHL, FedEx, UPS, and TNT , and can ship using your freight account upon request.
Mode of Transportation
We ship via DHL, FedEx, UPS, and TNT. If you prefer a specific logistics provider, we can ship using your designated carrier.
Return and Refund
Returns are accepted within 60 days of invoice with RMA approval. Items must be resalable; original invoice and test report are required. No returns for customer errors.

Related recommended products

151210-7322-TH

151210-7322-TH

$0.47
DetailsAdd to cart
151206-8322-TH

151206-8322-TH

$0.54
DetailsAdd to cart
151206-8422-TB

151206-8422-TB

$0.56
DetailsAdd to cart
151208-2320-TH

151208-2320-TH

$0.58
DetailsAdd to cart
Buying Guide
Summary

TE Connectivity AMP Connectors 103309-3 is sourced in Headers, Male Pins category when teams want clear constraints and a repeatable validation path. Key specs include Description (CONN HEADER VERT 16POS 2.54MM), Series (AMP-Latch), Packaging (Tube), Temperature (-65°C ~ 105°C), and Mounting (Through Hole).

Selection Notes
  • For 103309-3, verify the supply current (1A per Contact) under your operating conditions and modes.
  • Confirm the operating temperature range (-65°C ~ 105°C) meets your deployment conditions.
  • Double-check Contact Shape (Square) against your specification and operating conditions.
Alternates & Substitutions
  • For Headers, Male Pins substitutions, lock footprint/pinout and operating envelope first, then verify the critical performance conditions on your hardware.
  • If the alternate is “close but not identical”, document the differences and define a measurable acceptance test for production.
  • When evaluating alternates, treat mounting Through Hole, packaging Tube as non-negotiable unless you are re-spinning the PCB.
  • When in doubt, treat the swap as an ECO: define acceptance criteria, then validate under worst-case operating corners.
FAQ

Who is the manufacturer of 103309-3?
TE Connectivity AMP Connectors

What should I verify before using 103309-3 in production?
Confirm footprint/pinout, min/max ratings, operating temperature, and the datasheet test conditions behind key specifications.

What Number of Positions is listed for 103309-3?
16

What Contact Finish - Mating is listed for 103309-3?
Gold or Gold-Palladium

Application Scenarios

For many Headers, Male Pins designs, TE Connectivity AMP Connectors 103309-3 is vetted against electrical margins, thermal headroom, and mechanical integration before the BOM is frozen. They define how boards and cables mate, influencing reliability, manufacturability, and serviceability. Engineers often evaluate current rating, retention, plating, impedance control, and mating cycles to prevent intermittent field failures. In practice, within outdoor enclosures, sealing and corrosion resistance prevent contact degradation under moisture and condensation. In lab equipment, repeated reconfiguration drives mating-cycle wear, so shielding and retention are validated to prevent intermittent contacts. In embedded devices, board-to-board connectors enable modular assemblies where stack-up tolerance and retention define reliability.

Compatibility Advice
  • For production stability, verify sealing, corrosion resistance, and strain relief so vibration and handling do not degrade contact stability over time. This keeps acceptance criteria measurable and repeatable.
Project Fit
  • Strongest fit when you can test and document TE Connectivity AMP Connectors 103309-3 for Headers, Male Pins integration on the assembled PCB, if you can validate SI margins end-to-end for high-speed links and cabling.
