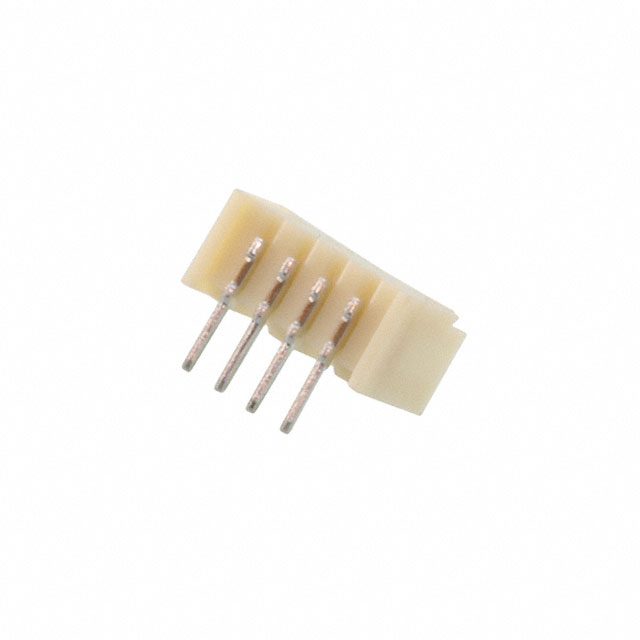

125SH-A-04-TR

Product Detailed Parameters

• Description：CONN HEADER R/A 4POS 1.25MM
• Series：125SH
• Mfr：Adam Tech
• Package：Bag
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.049" (1.25mm)
• Number of Positions：4
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Friction Lock
• Contact Length - Mating：0.098" (2.50mm)
• Contact Length - Post：0.087" (2.20mm)
• Overall Contact Length：-
• Insulation Height：0.130" (3.30mm)
• Contact Shape：Square
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：-
• Contact Finish - Post：Tin
• Contact Material：Brass
• Insulation Material：Polyamide (PA46), Nylon 4/6
• Features：-
• Operating Temperature：-25°C ~ 85°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：1A
• Voltage Rating：250VAC
