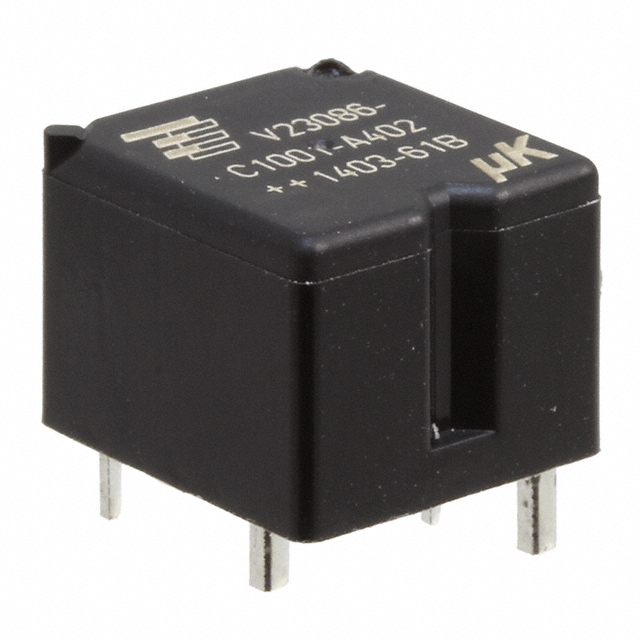

1393280-5

1393280-5

$3.79
  • Description:RELAY AUTO SPST-NO 30A 12V
  • Series:Micro Relay K
  • Mfr:TE Connectivity Potter & Brumfield Relays
  • Package:Tube

SKU:55da597577fc Category: Brand:


  • Quantity
    • -
    • +
  •
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline:86-132-6715-2157

email:chipapexlimited@gmail.com
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

*
*
*
*
Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

Product Detailed Parameters

  • Description:RELAY AUTO SPST-NO 30A 12V
  • Series:Micro Relay K
  • Mfr:TE Connectivity Potter & Brumfield Relays
  • Package:Tube
  • Coil Type:Non Latching
  • Coil Current:47.2 mA
  • Coil Voltage:12VDC
  • Contact Form:SPST-NO (1 Form A)
  • Contact Rating (Current):30 A
  • Switching Voltage:12VDC - Nom
  • Must Operate Voltage:6.9 VDC
  • Must Release Voltage:1.5 VDC
  • Operate Time:3 ms
  • Release Time:1.5 ms
  • Features:-
  • Mounting Type:Through Hole
  • Termination Style:PC Pin
  • Operating Temperature:-40°C ~ 105°C

Download product information

1393280-5

Buying Guide
Summary

TE Connectivity Potter & Brumfield Relays 1393280-5 is evaluated in Automotive Relays category where failure modes and qualification evidence matter as much as headline ratings. Key specs include Description (RELAY AUTO SPST-NO 30A 12V), Temperature (-40°C ~ 105°C), Mounting (Through Hole), and Packaging (Tube).

Selection Notes
  • For 1393280-5, validate the operating temperature range (-40°C ~ 105°C) for your environment and margin.
  • Verify Coil Current (47.2 mA) and compare it against your reference design limits.
  • Confirm the mounting type (Through Hole) is suitable for your production flow and reliability target.
  • Check the supply current (47.2 mA) in your power budget and thermal plan.
Alternates & Substitutions
  • For Automotive Relays substitutions, lock footprint/pinout and operating envelope first, then verify the critical performance conditions on your hardware.
  • When evaluating alternates, treat mounting Through Hole, packaging Tube as non-negotiable unless you are re-spinning the PCB.
  • For switching parts, align contact form SPST-NO (1 Form A), coil 12VDC, contact rating 30 A and validate life expectancy under your real duty cycle.
  • If this is for production, share your constraints and documentation needs so the alternate can be released cleanly.
FAQ

What details help you quote 1393280-5 quickly?
Share the part number (1393280-5), quantity, target delivery date, and any packaging or documentation requirements.

What Switching Voltage does 1393280-5 have?
12VDC - Nom

How is 1393280-5 mounted?
Through Hole

What Release Time does 1393280-5 have?
1.5 ms

Application Scenarios

For many Automotive Relays designs, TE Connectivity Potter & Brumfield Relays 1393280-5 is vetted against electrical margins, thermal headroom, and mechanical integration before the BOM is frozen. In practice, for user-accessible switching, safety approvals and ingress protection often define the shortlist more than headline specs. A disciplined selection reduces nuisance faults and keeps service procedures straightforward in the field. Across industrial safety, switching is chosen for predictable behavior and validated failure modes under contamination and vibration. In industrial maintenance scenarios, robust switching and clear failure behavior reduce the risk of unexpected restarts or false enables. In automotive and industrial power routing, solid-state options reduce mechanical wear and enable faster fault response.

Compatibility Advice
  • For Automotive Relays, to reduce integration risk, validate switching behavior under contamination and vibration so interlocks remain deterministic. This keeps integration from depending on typical-only conditions.
Project Fit
  • Strongest fit when you can test and document TE Connectivity Potter & Brumfield Relays 1393280-5 for Automotive Relays integration in the final enclosure, when you need deterministic behavior in safety, interlock, or control paths.
