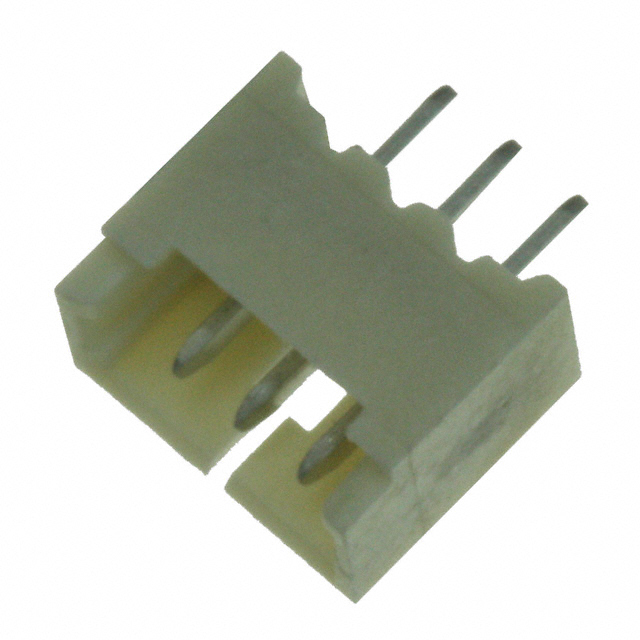

1734598-3

Product Detailed Parameters

• Description：CONN HEADER VERT 3POS 1.25MM
• Series：High Performance Interconnect (HPI)
• Mfr：TE Connectivity AMP Connectors
• Package：Tube
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.049" (1.25mm)
• Number of Positions：3
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：-
• Contact Length - Mating：-
• Contact Length - Post：0.067" (1.70mm)
• Overall Contact Length：-
• Insulation Height：0.185" (4.70mm)
• Contact Shape：Square
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：120.0µin (3.05µm)
• Contact Finish - Post：Tin
• Contact Material：Phosphor Bronze
• Insulation Material：Polyamide (PA9T), Nylon 9T, Glass Filled
• Features：-
• Operating Temperature：-25°C ~ 85°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Natural
• Current Rating (Amps)：1A
• Voltage Rating：100VAC
