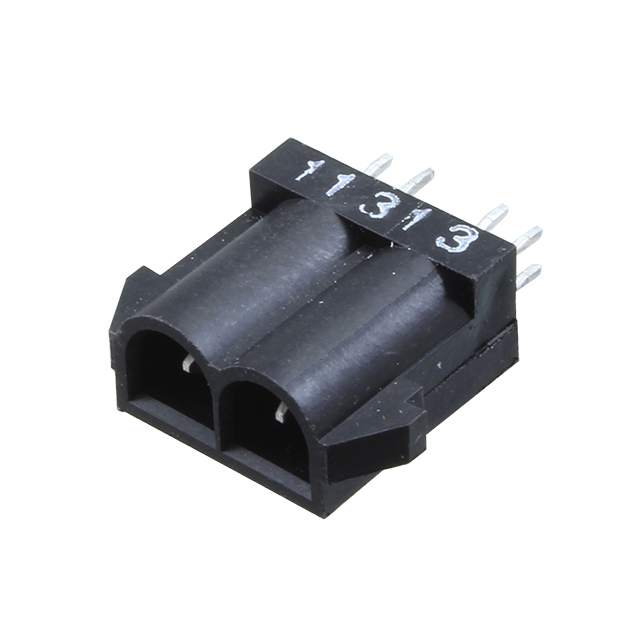

173924-1

Product Detailed Parameters

• Description：CONN HEADER VERT 2POS 6.35MM
• Series：Universal MATE-N-LOK
• Mfr：TE Connectivity AMP Connectors
• Package：Bulk
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.250" (6.35mm)
• Number of Positions：2
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Board or Cable
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Through Hole
• Termination：Press-Fit, Solder
• Fastening Type：Locking Ramp
• Contact Length - Mating：-
• Contact Length - Post：0.189" (4.80mm)
• Overall Contact Length：0.764" (19.40mm)
• Insulation Height：0.624" (15.85mm)
• Contact Shape：-
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：78.7µin (2.00µm)
• Contact Finish - Post：Tin
• Contact Material：Copper Alloy
• Insulation Material：Thermoplastic, Glass Filled
• Features：-
• Operating Temperature：-25°C ~ 85°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：15A
• Voltage Rating：500VAC
