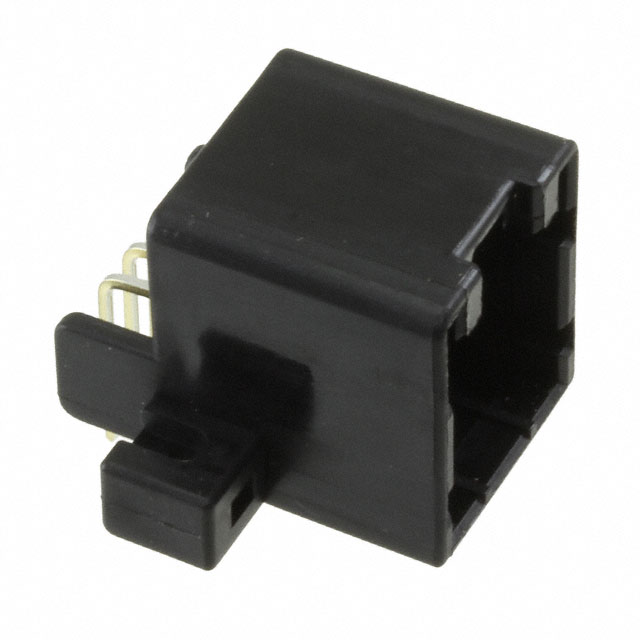

174049-2

Product Detailed Parameters

• Description：CONN HEADER R/A 8POS 2.5MM
• Series：Multi-Lock
• Mfr：TE Connectivity AMP Connectors
• Package：Bulk
• Connector Type：-
• Contact Type：Tab
• Pitch - Mating：0.098" (2.50mm)
• Number of Positions：8
• Number of Rows：2
• Row Spacing - Mating：0.205" (5.20mm)
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Locking Ramp
• Contact Length - Mating：0.276" (7.00mm)
• Contact Length - Post：0.157" (4.00mm)
• Overall Contact Length：-
• Insulation Height：0.658" (16.71mm)
• Contact Shape：Rectangular
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：-
• Contact Finish - Post：Tin
• Contact Material：Brass
• Insulation Material：Polybutylene Terephthalate (PBT)
• Features：Mounting Flange
• Operating Temperature：-30°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：-
• Insulation Color：Black
• Current Rating (Amps)：Varies by Wire Gauge
• Voltage Rating：-
