1ED020I12F2XUMA1

Product Detailed Parameters

• Description：DGT ISO 4.5KV 1CH GT DVR DSO16
• Series：EiceDRIVER™
• Mfr：Infineon Technologies
• Package：Tape & Reel (TR),Cut Tape (CT)
• Technology：Magnetic Coupling
• Number of Channels：1
• Voltage - Isolation：4500Vrms
• Propagation Delay tpLH / tpHL (Max)：-
• Pulse Width Distortion (Max)：-
• Rise / Fall Time (Typ)：30ns, 50ns
• Current - Output High, Low：2A, 2A
• Current - Peak Output：-
• Voltage - Forward (Vf) (Typ)：-
• Voltage - Output Supply：4.5V ~ 5.5V
• Grade：-
• Qualification：-
• Operating Temperature：-40°C ~ 150°C (TJ)
• Mounting Type：Surface Mount

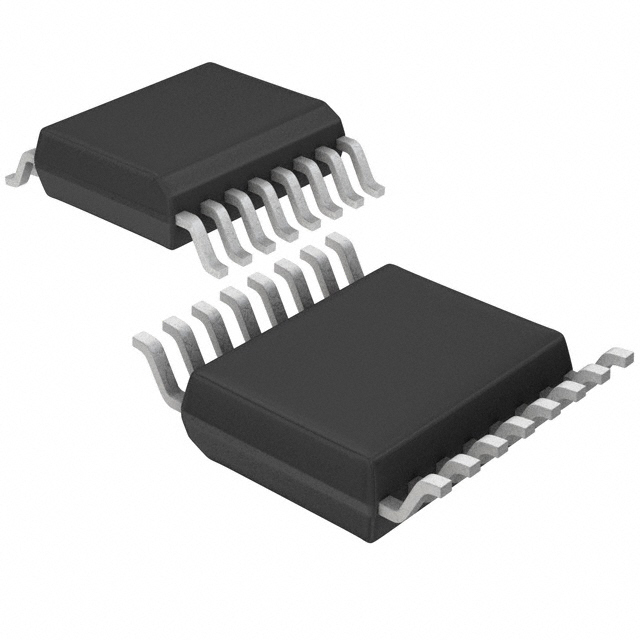

• Package / Case：16-SOIC (0.295", 7.50mm Width)
• Supplier Device Package：PG-DSO-16-15
• Common Mode Transient Immunity (Min)：-
• Approval Agency：-
• Current - DC Forward (If) (Max)：-

Download product information
