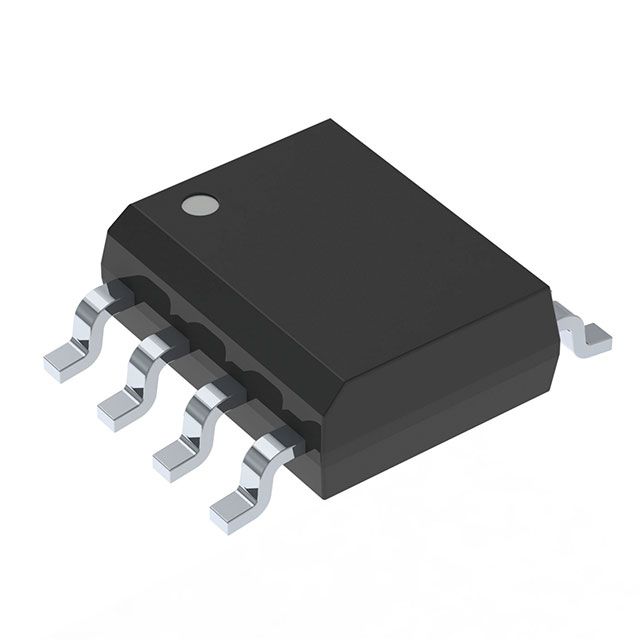

1EDC20H12AHXUMA1

Product Detailed Parameters

• Description：DGT ISO 2.5KV 1CH GT DVR DSO8-59
• Series：EiceDRIVER™
• Mfr：Infineon Technologies
• Package：Tape & Reel (TR),Cut Tape (CT)
• Technology：Magnetic Coupling
• Number of Channels：1
• Voltage - Isolation：2500Vrms
• Propagation Delay tpLH / tpHL (Max)：-
• Pulse Width Distortion (Max)：-
• Rise / Fall Time (Typ)：10ns, 9ns
• Current - Output High, Low：-
• Current - Peak Output：-
• Voltage - Forward (Vf) (Typ)：-
• Voltage - Output Supply：3.1V ~ 17V
• Grade：-
• Qualification：-
• Operating Temperature：-40°C ~ 150°C (TJ)
• Mounting Type：Surface Mount
• Package / Case：8-SOIC (0.295", 7.50mm Width)
• Supplier Device Package：PG-DSO-8-59
• Common Mode Transient Immunity (Min)：-
• Approval Agency：-
• Current - DC Forward (If) (Max)：-
