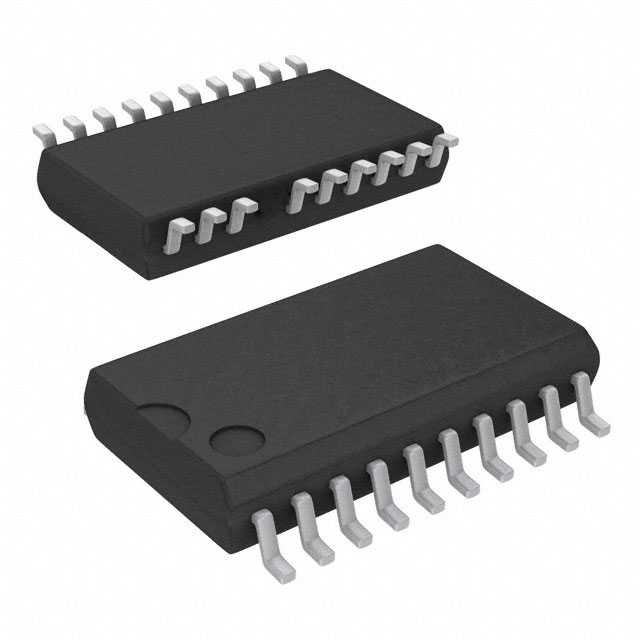

1EDI30J12CPXUMA1

Product Detailed Parameters

• Description：DIGITAL ISO 1CH GATE DVR DSO19-4
• Series：EiceDRIVER™
• Mfr：Infineon Technologies
• Package：Tape & Reel (TR),Cut Tape (CT),Bulk
• Technology：Magnetic Coupling
• Number of Channels：1
• Voltage - Isolation：-
• Propagation Delay tpLH / tpHL (Max)：-
• Pulse Width Distortion (Max)：-
• Rise / Fall Time (Typ)：23ns, 22ns
• Current - Output High, Low：4A, 4A
• Current - Peak Output：-
• Voltage - Forward (Vf) (Typ)：-
• Voltage - Output Supply：4.75V ~ 17.5V
• Grade：-
• Qualification：-
• Operating Temperature：-40°C ~ 150°C (TJ)
• Mounting Type：Surface Mount
• Package / Case：20-SOIC (0.295", 7.50mm Width), 19 Leads
• Supplier Device Package：PG-DSO-19-4
• Common Mode Transient Immunity (Min)：-
• Approval Agency：-
• Current - DC Forward (If) (Max)：-
