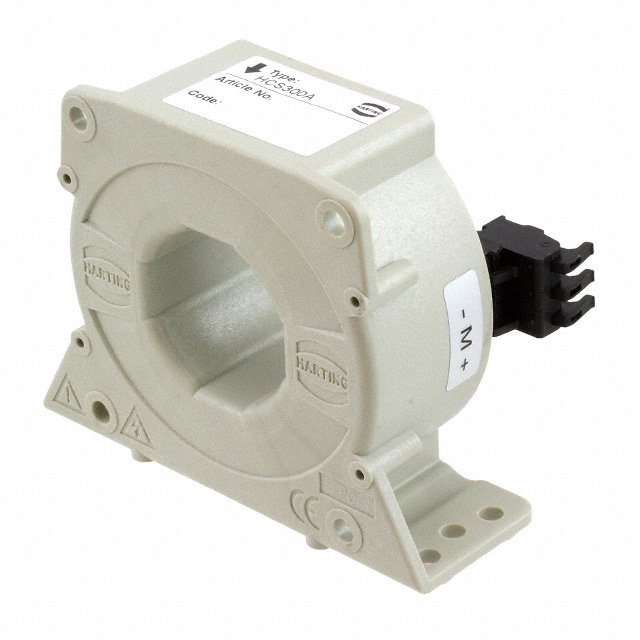

20310500101

20310500101

  • Description:SENSOR CURRENT HALL 500A AC
  • Series:-
  • Mfr:HARTING
  • Package:Bulk

SKU:6b2e97d94e92 Category: Brand:

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline:86-132-6715-2157

email:chipapexlimited@gmail.com
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

*
*
*
*
Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

Product Detailed Parameters

  • Description:SENSOR CURRENT HALL 500A AC
  • Series:-
  • Mfr:HARTING
  • Package:Bulk
  • For Measuring:AC/DC
  • Sensor Type:Hall Effect, Closed Loop
  • Current - Sensing:500A
  • Number of Channels:1
  • Output:Ratiometric, Voltage
  • Sensitivity:-
  • Frequency:100kHz
  • Linearity:±0.1%
  • Accuracy:±0.6%
  • Voltage - Supply:15V ~ 24V
  • Response Time:1µs
  • Current - Supply (Max):24mA
  • Operating Temperature:-40°C ~ 85°C
  • Grade:-
  • Qualification:-
  • Polarization:Bidirectional
  • Mounting Type:Panel Mount
  • Package / Case:Module, Single Pass Through
  • Supplier Device Package:-

Download product information

20310500101

Buying Guide
Summary

HARTING 20310500101 is used in Current Sensors category where placement, interface fit, and operating envelope drive measurement reliability. Key specs include Description (SENSOR CURRENT HALL 500A AC), Temperature (-40°C ~ 85°C), Package/case (Module, Single Pass Through), and Mounting (Panel Mount).

Selection Notes
  • For 20310500101, confirm the mounting type (Panel Mount) matches your assembly process and reliability requirements.
  • Confirm the supply requirement (15V ~ 24V) is met during startup, transients, and brownout.
  • Confirm the operating frequency (100kHz) is compatible with your clocking architecture.
Alternates & Substitutions
  • For Current Sensors, validate alternates under worst-case corners rather than assuming typical-only conditions represent production builds.
  • Validate the min/max operating conditions (supply 15V ~ 24V, temperature -40°C ~ 85°C) and keep headroom for worst-case corners.
  • When evaluating alternates, treat package/case Module, Single Pass Through, mounting Panel Mount, packaging Bulk as non-negotiable unless you are re-spinning the PCB.
  • When in doubt, treat the swap as an ECO: define acceptance criteria, then validate under worst-case operating corners.
FAQ

What mounting style is specified for 20310500101?
Panel Mount

What operating frequency does 20310500101 run at?
100kHz

Which operating temperature range is listed for 20310500101?
-40°C ~ 85°C

Which Number of Channels is listed for 20310500101?
1

Application Scenarios

In the Current Sensors category, HARTING 20310500101 is often evaluated by how well it fits electrical, thermal, and mechanical constraints in the target system. In real deployments, integration often involves placement strategy, airflow considerations, and calibration workflows tied to the target environment. Reliable environmental sensing enables better automation decisions and reduces operational risk. Across smart buildings, environmental sensors drive HVAC optimization across dusty airflow and changing installation conditions. In agriculture, humidity and particulate sensing supports greenhouse automation where condensation and contaminants are common. In data centers, distributed sensing improves hot-spot detection in constrained airflow channels between high-density racks. Environmental sensing focuses on drift, response time, contamination exposure, and compensation so readings remain meaningful over life. This keeps the design closer to the datasheet boundaries and farther from fragile, layout-dependent behavior.

Compatibility Advice
  • To avoid late surprises, check filtering and bandwidth choices so noise and latency align with the control or monitoring use-case before release to production.
Project Fit
  • Good fit when you can bench-verify HARTING 20310500101 for Current Sensors integration on the assembled PCB, and you can validate drift, calibration, and filtering under the real input environment and cabling.
  • Poor fit when noise and interference sources are unknown, so the error budget cannot be bounded, because repeatable production verification is not feasible.
