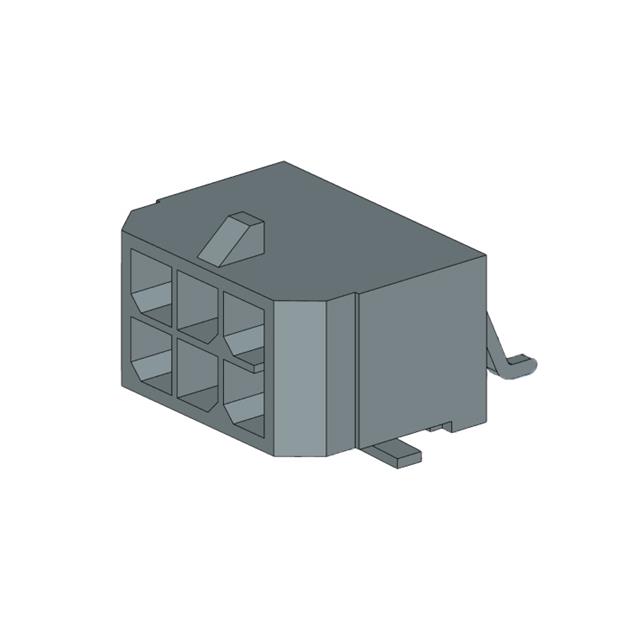

2182160600

Product Detailed Parameters

• Description：MICRO-FIT+DR SMT RA NAIL 6CKT TI
• Series：Micro-Fit+ 218216
• Mfr：Molex
• Package：Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.118" (3.00mm)
• Number of Positions：6
• Number of Rows：2
• Row Spacing - Mating：0.118" (3.00mm)
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Surface Mount, Right Angle
• Termination：Solder
• Fastening Type：Locking Ramp
• Contact Length - Mating：-
• Contact Length - Post：-
• Overall Contact Length：-
• Insulation Height：0.291" (7.40mm)
• Contact Shape：Square
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：-
• Contact Finish - Post：Tin
• Contact Material：Copper Alloy
• Insulation Material：Liquid Crystal Polymer (LCP), Glass Filled
• Features：Solder Retention
• Operating Temperature：-40°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：13A per Contact
• Voltage Rating：600VAC/DC
