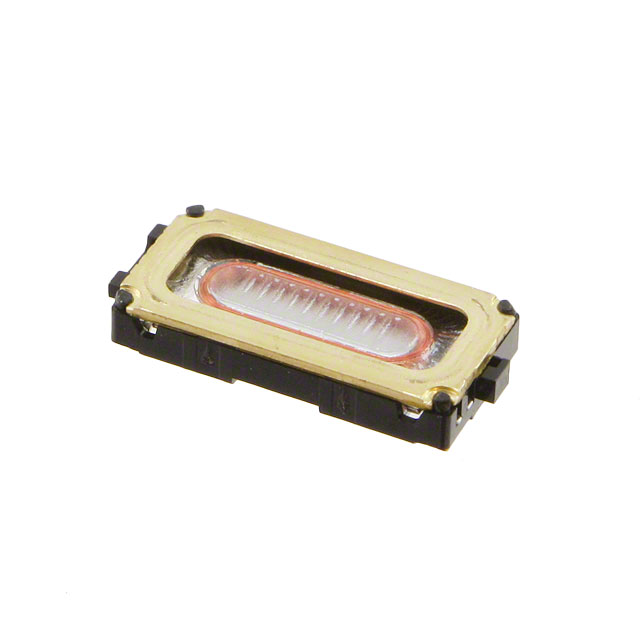

2403 260 00106

2403 260 00106

$0.43
  • Description:SPEAKER 32OHM 10MW TOP PORT 65DB
  • Series:SC-Lean-WP
  • Mfr:Knowles
  • Package:Tape & Reel (TR)

SKU:e8902b810a68 Category: Brand:


  • Quantity
    • -
    • +
  •
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline:86-132-6715-2157

email:chipapexlimited@gmail.com
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

*
*
*
*
Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

Product Detailed Parameters

  • Description:SPEAKER 32OHM 10MW TOP PORT 65DB
  • Series:SC-Lean-WP
  • Mfr:Knowles
  • Package:Tape & Reel (TR)
  • Type:Receiver
  • Technology:Magnetic
  • Impedance:32 Ohms
  • Power - Max:75 mW
  • Shape:Rectangular
  • Termination:Spring Type
  • Size / Dimension:0.472" L x 0.236" W (12.00mm x 6.00mm)
  • Height - Seated (Max):0.079" (2.00mm)
  • Frequency - Self Resonant:350Hz
  • Efficiency - dBA:65
  • Efficiency - Testing:1W/1M
  • Efficiency - Type:Sound Pressure Level (SPL)
  • Port Location:Top
  • Material - Cone:Polyester
  • Material - Magnet:Nd-Fe-B
  • Ingress Protection:Waterproof
  • Ratings:-
  • Frequency Range:160 Hz ~ 10 kHz
  • Power - Rated:10 mW

Download product information

2403 260 00106

Buying Guide
Summary

Knowles 2403-260-00106 is sourced in Speakers category when teams want clear constraints and a repeatable validation path. Key specs include Description (SPEAKER 32OHM 10MW TOP PORT 65DB), Series (SC-Lean-WP), Type (Receiver), Packaging (Tape & Reel (TR)), and Frequency (350Hz).

Selection Notes
  • For 2403-260-00106, verify the frequency range (160 Hz ~ 10 kHz) meets your system requirements with margin.
  • Verify the expected efficiency (1W/1M) aligns with your power budget and thermal plan.
  • Confirm Ingress Protection (Waterproof) meets your design constraints and system-level expectations.
Alternates & Substitutions
  • For Speakers, compare the datasheet test conditions behind key specs and re-check the margins that were tightest during bring-up.
  • For any substitution, verify the datasheet conditions behind headline specs and validate the alternate under your worst-case operating corners.
  • Validate min/max ratings and operating conditions at corners so the substitution does not depend on typical-only behavior.
  • If you are qualifying a second source, align documentation/traceability requirements early to avoid surprises in procurement.
FAQ

Can you confirm the Efficiency - Type for 2403-260-00106?
Sound Pressure Level (SPL)

What is the Efficiency - Testing of 2403-260-00106?
1W/1M

Can you confirm the Impedance for 2403-260-00106?
32 Ohms

What Height - Seated (Max) is listed for 2403-260-00106?
0.079" (2.00mm)

Application Scenarios

For Knowles 2403-260-00106 used in Speakers designs, the shortlist is often driven by predictable margins and a straightforward validation plan. They enable sound capture and playback by controlling gain, filtering, conversion, and acoustic transduction. Engineers often focus on SNR, frequency response, EMI immunity, and mechanical acoustics so performance holds in real rooms and enclosures. In automotive infotainment, analog audio must tolerate EMI and thermal cycling without intermittent artifacts. In real deployments, across kiosks and public terminals, robust audio signaling improves accessibility in high-ambient-noise environments. Across conferencing systems, microphone front ends support far-field voice pickup in reverberant rooms with HVAC noise and echo.

Compatibility Advice
  • For compatibility, validate noise, bandwidth, and distortion under the real load and supply rails so performance is not dependent on lab-only conditions. This reduces the chance that substitutions push hidden limits.
  • For compatibility, check filtering, gain structure, and grounding so hum and coupling do not dominate in the final enclosure and cabling. This keeps integration from depending on typical-only conditions.
Project Fit
  • Good fit when you can measure and verify Knowles 2403-260-00106 for Speakers integration with the real wiring and cabling, and you can validate filtering, grounding, and startup behavior so artifacts are controlled in production builds.
  • Poor fit when startup and mute behavior is not verified, increasing audible artifact risk in the field, because the integration depends on constraints that cannot be controlled across builds.
