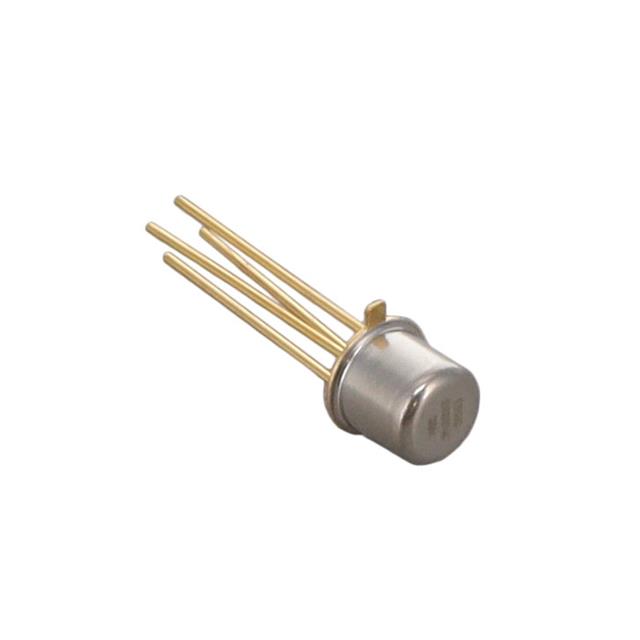

2N3823

Product Detailed Parameters

• Description：JFET N-CH 30V TO72
• Series：-
• Mfr：Microchip Technology
• Package：Bulk
• FET Type：N-Channel
• Voltage - Breakdown (V(BR)GSS)：30 V
• Drain to Source Voltage (Vdss)：30 V
• Current - Drain (Idss) @ Vds (Vgs=0)：20 mA @ 15 V
• Current Drain (Id) - Max：-
• Voltage - Cutoff (VGS off) @ Id：8 V @ 500 pA
• Input Capacitance (Ciss) (Max) @ Vds：6pF @ 15V
• Resistance - RDS(On)：-
• Power - Max：300 mW
• Operating Temperature：-55°C ~ 200°C (TJ)
• Mounting Type：Through Hole
• Package / Case：TO-206AF, TO-72-4 Metal Can
• Supplier Device Package：TO-72
• Grade：Military
• Qualification：MIL-PRF-19500/375
