2N65L

Product Detailed Parameters

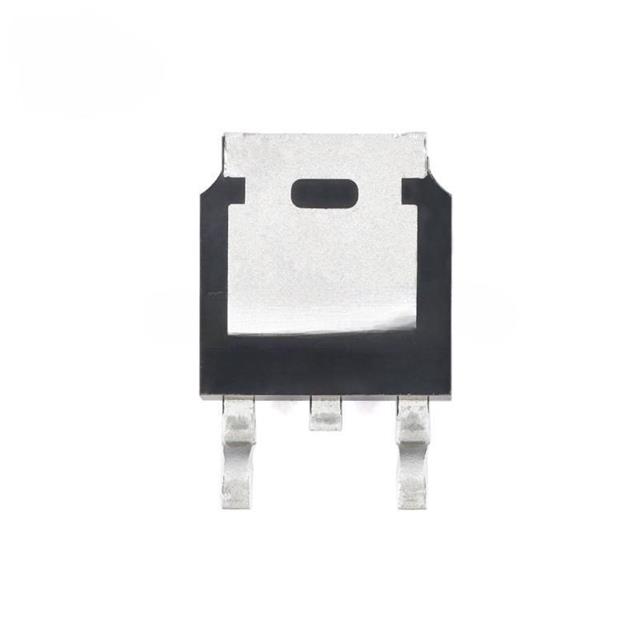

• Description：TO-252 N-CHANNEL POWER MOSFET
• Series：UMW
• Mfr：UMW
• Package：Tape & Reel (TR),Cut Tape (CT)
• FET Type：N-Channel
• Technology：MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss)：650 V
• Current - Continuous Drain (Id) @ 25°C：2A (Tj)
• Drive Voltage (Max Rds On, Min Rds On)：10V
• Rds On (Max) @ Id, Vgs：5.5Ohm @ 1A, 10V
• Vgs(th) (Max) @ Id：4V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs：14.5 nC @ 10 V
• Vgs (Max)：±30V
• Input Capacitance (Ciss) (Max) @ Vds：311 pF @ 25 V
• FET Feature：-
• Power Dissipation (Max)：-
• Operating Temperature：150°C (TJ)
• Grade：-
• Qualification：-
• Mounting Type：Surface Mount
• Supplier Device Package：TO-252 (DPAK)
• Package / Case：TO-252-3, DPAK (2 Leads + Tab), SC-63
