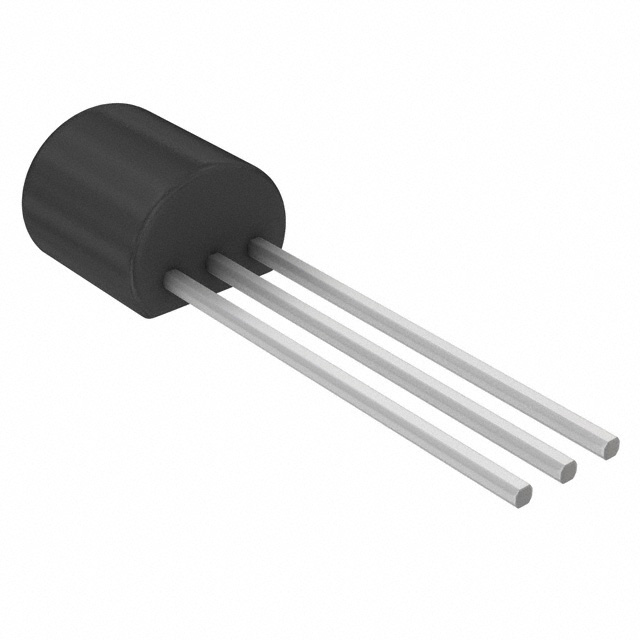

2N7000

Product Detailed Parameters

• Description：MOSFET N-CH 60V 350MA TO92-3
• Series：STripFET™
• Mfr：STMicroelectronics
• Package：Bulk
• FET Type：N-Channel
• Technology：MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss)：60 V
• Current - Continuous Drain (Id) @ 25°C：350mA (Tc)
• Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
• Rds On (Max) @ Id, Vgs：5Ohm @ 500mA, 10V
• Vgs(th) (Max) @ Id：3V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs：2 nC @ 5 V
• Vgs (Max)：±18V
• Input Capacitance (Ciss) (Max) @ Vds：43 pF @ 25 V
• FET Feature：-
• Power Dissipation (Max)：1W (Tc)
• Operating Temperature：-55°C ~ 150°C (TJ)
• Grade：-
• Qualification：-
• Mounting Type：Through Hole
• Supplier Device Package：TO-92-3
• Package / Case：TO-226-3, TO-92-3 (TO-226AA)
