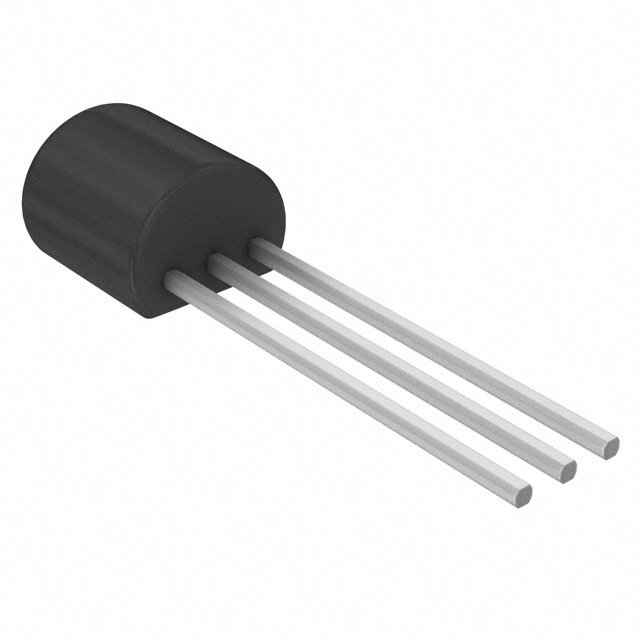

2N7000,126

Product Detailed Parameters

• Description：MOSFET N-CH 60V 300MA TO92-3
• Series：TrenchMOS™
• Mfr：NXP USA Inc.
• Package：Tape & Box (TB)
• FET Type：N-Channel
• Technology：MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss)：60 V
• Current - Continuous Drain (Id) @ 25°C：300mA (Tc)
• Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
• Rds On (Max) @ Id, Vgs：5Ohm @ 500mA, 10V
• Vgs(th) (Max) @ Id：2V @ 1mA
• Gate Charge (Qg) (Max) @ Vgs：-
• Vgs (Max)：±30V
• Input Capacitance (Ciss) (Max) @ Vds：40 pF @ 10 V
• FET Feature：-
• Power Dissipation (Max)：830mW (Ta)
• Operating Temperature：-55°C ~ 150°C (TJ)
• Grade：-
• Qualification：-
• Mounting Type：Through Hole
• Supplier Device Package：TO-92-3
• Package / Case：TO-226-3, TO-92-3 (TO-226AA) Formed Leads
