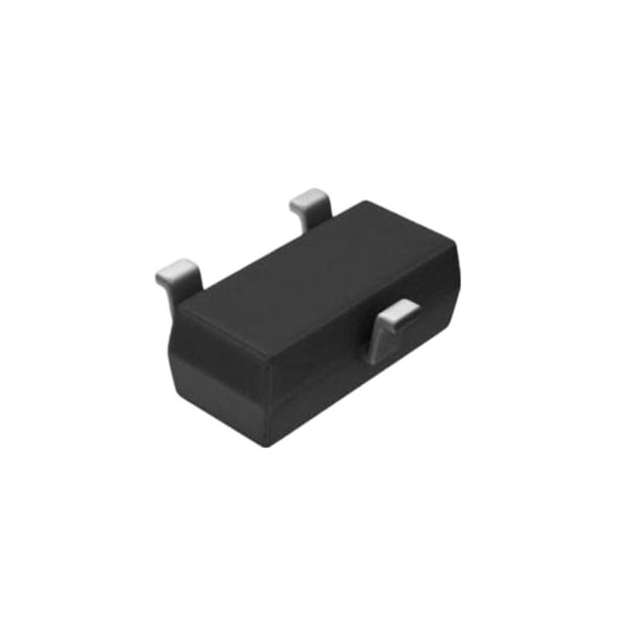

2N7002K

Product Detailed Parameters

• Description：MOSFET SOT-23 N Channel 60V
• Series：SOT-23
• Mfr：MDD
• Package：Tape & Reel (TR)
• FET Type：N-Channel
• Technology：MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss)：60 V
• Current - Continuous Drain (Id) @ 25°C：500mA (Ta)
• Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
• Rds On (Max) @ Id, Vgs：900mOhm @ 300mA, 10V
• Vgs(th) (Max) @ Id：2.5V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs：0.31 nC @ 10 V
• Vgs (Max)：±20V
• Input Capacitance (Ciss) (Max) @ Vds：23.8 pF @ 10 V
• FET Feature：-
• Power Dissipation (Max)：500mW (Ta)
• Operating Temperature：-55°C ~ 150°C
• Grade：-
• Qualification：-
• Mounting Type：Surface Mount
• Supplier Device Package：SOT-23
• Package / Case：TO-236-3, SC-59, SOT-23-3
