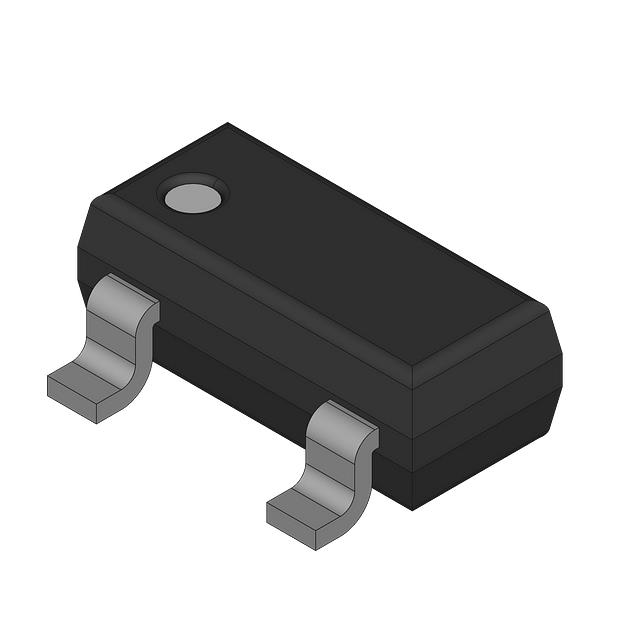

2SA1520-TB-E

2SA1520-TB-E

$0.48000
  • Description：PNP SILICON TRANSISTOR
  • Series：-

SKU:00588712041c Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：839314116@qq.com
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

*
*
*
Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

Product Detailed Parameters

  • Description：PNP SILICON TRANSISTOR
  • Series：-
  • Mfr：Sanyo
  • Package：Bulk
  • Resistors Included：R1 and R2
  • Transistor Type：NPN - Pre-Biased
  • Current - Collector (Ic) (Max)：500 mA
  • Voltage - Collector Emitter Breakdown (Max)：50 V
  • Resistor - Base (R1)：2.2 kOhms
  • Resistor - Emitter Base (R2)：10 kOhms
  • DC Current Gain (hFE) (Min) @ Ic, Vce：50 @ 10mA, 5V
  • Vce Saturation (Max) @ Ib, Ic：300mV @ 2.5mA, 50mA
  • Current - Collector Cutoff (Max)：500nA
  • Frequency - Transition：250 MHz
  • Power - Max：200 mW
  • Grade：-
  • Qualification：-
  • Mounting Type：Surface Mount
  • Package / Case：TO-236-3, SC-59, SOT-23-3
  • Supplier Device Package：3-CP

Download product information
