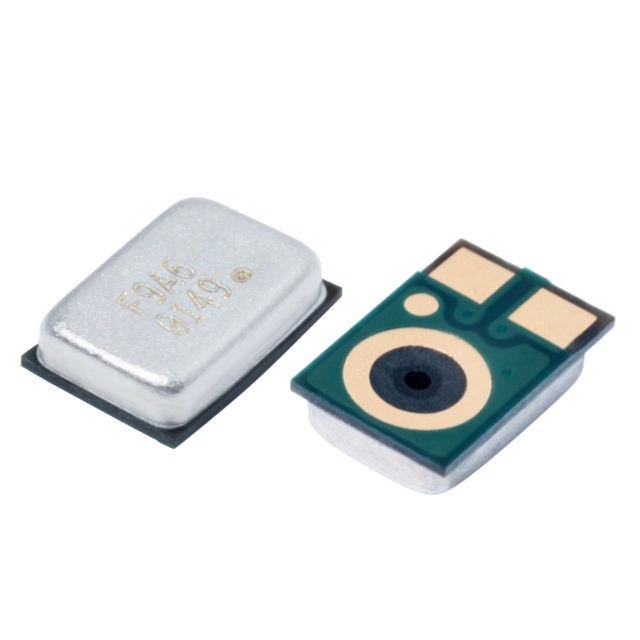

3SM122KZB1VD-002-R

3SM122KZB1VD-002-R

$1.11
  • Description:ANALOG MIC/BOTTOM PORT/SEN -38DB
  • Series:3S MEMS
  • Mfr:3S (Solid State System)
  • Package:Tape & Reel (TR),Cut Tape (CT)

SKU:37ce0c7c0e41 Category: Brand:


  • Quantity
    • -
    • +
  •
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline:86-132-6715-2157

email:chipapexlimited@gmail.com
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

*
*
*
*
Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

Product Detailed Parameters

  • Description:ANALOG MIC/BOTTOM PORT/SEN -38DB
  • Series:3S MEMS
  • Mfr:3S (Solid State System)
  • Package:Tape & Reel (TR),Cut Tape (CT)
  • Type:MEMS (Silicon)
  • Output Type:Analog
  • Direction:Omnidirectional
  • Frequency Range:100 Hz ~ 10 kHz
  • Sensitivity:-38dB ±1dB @ 94dB SPL
  • S/N Ratio:64dB
  • Impedance:200 Ohms
  • Voltage Range:-
  • Current - Supply:80 µA
  • Port Location:Bottom
  • Ratings:-
  • Termination:Surface Mount
  • Size / Dimension:0.108" L x 0.073" W (2.75mm x 1.85mm)
  • Height (Max):0.039" (1.00mm)
  • Shape:Rectangular
  • Grade:-
  • Qualification:-
  • Voltage - Rated:-

Download product information

3SM122KZB1VD-002-R

Buying Guide
Summary

3S (Solid State System) 3SM122KZB1VD-002-R is an analog omnidirectional MEMS microphone in Microphones category. Key specs: frequency range 100 Hz ~ 10 kHz; sensitivity -38dB ±1dB @ 94dB SPL; SNR 64dB; supply current 80 µA; bottom port; impedance 200 Ohms; package Tape & Reel (TR),Cut Tape (CT).

Selection Notes
  • For 3SM122KZB1VD-002-R, confirm the frequency range (100 Hz ~ 10 kHz) fits your signal band and filtering plan.
  • For 3SM122KZB1VD-002-R, match interface/output type (Analog) when selecting alternatives or second sources.
  • For 3SM122KZB1VD-002-R, confirm packaging option and moisture sensitivity handling if your assembly process requires it (packaging Tape & Reel (TR),Cut Tape (CT); frequency range 100 Hz ~ 10 kHz).
FAQ

What should I provide for an accurate quote for 3SM122KZB1VD-002-R?
Send the part number (3SM122KZB1VD-002-R), quantity, target delivery date, and any required packaging or documentation.

Who is the manufacturer/brand for 3SM122KZB1VD-002-R?
3S (Solid State System)

What is the output type of 3SM122KZB1VD-002-R?
Analog

What is the packaging of 3SM122KZB1VD-002-R?
Tape & Reel (TR),Cut Tape (CT)

Application Scenarios
3S (Solid State System) 3SM122KZB1VD-002-R in the Microphones category is typically selected when engineers need predictable, spec-driven behavior in a production design. Good audio building blocks reduce tuning effort and deliver consistent user experience across production units. They enable sound capture and playback by controlling gain, filtering, conversion, and acoustic transduction. In smart home devices, audio and voice processing works near radios and switching supplies, so EMI immunity is crucial. In portable equipment, efficient amplification improves battery life while keeping distortion low at peak loudness. Overall, it improves predictability by keeping key performance stable across manufacturing variance and operating conditions.
