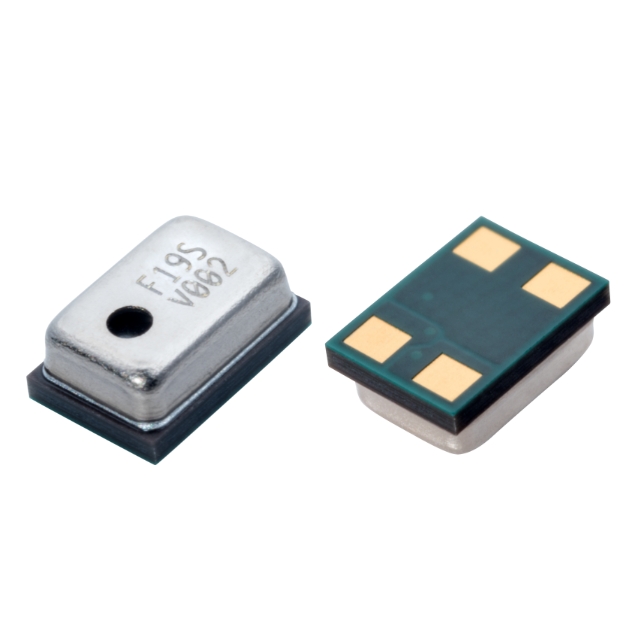

3SM122KZT1VA

3SM122KZT1VA

$1.11
  • Description:ANALOG MIC/TOP PORT/SEN -38DB
  • Series:3S MEMS
  • Mfr:3S (Solid State System)
  • Package:Tape & Reel (TR),Cut Tape (CT)

SKU:6c7878e3e03d Category: Brand:


  • Quantity
    • -
    • +
  •
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline:86-132-6715-2157

email:chipapexlimited@gmail.com
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

*
*
*
*
Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

Product Detailed Parameters

  • Description:ANALOG MIC/TOP PORT/SEN -38DB
  • Series:3S MEMS
  • Mfr:3S (Solid State System)
  • Package:Tape & Reel (TR),Cut Tape (CT)
  • Type:MEMS (Silicon)
  • Output Type:Analog
  • Direction:Omnidirectional
  • Frequency Range:100 Hz ~ 10 kHz
  • Sensitivity:-38dB ±1dB @ 94dB SPL
  • S/N Ratio:64dB
  • Impedance:200 Ohms
  • Voltage Range:-
  • Current - Supply:80 µA
  • Port Location:Top
  • Ratings:-
  • Termination:Surface Mount
  • Size / Dimension:0.108" L x 0.073" W (2.75mm x 1.85mm)
  • Height (Max):0.045" (1.15mm)
  • Shape:Rectangular
  • Grade:-
  • Qualification:-
  • Voltage - Rated:-

Download product information

3SM122KZT1VA

Buying Guide
Summary

3S (Solid State System) 3SM122KZT1VA is an analog omnidirectional MEMS microphone in Microphones category. Key specs: frequency range 100 Hz ~ 10 kHz; sensitivity -38dB ±1dB @ 94dB SPL; SNR 64dB; supply current 80 µA; top port; impedance 200 Ohms; package Tape & Reel (TR),Cut Tape (CT).

Selection Notes
  • For 3SM122KZT1VA, confirm the frequency range (100 Hz ~ 10 kHz) fits your signal band and filtering plan.
  • For 3SM122KZT1VA, match interface/output type (Analog) when selecting alternatives or second sources.
  • For 3SM122KZT1VA, for replacements, match pinout/footprint first, then verify min/max ratings and timing margins (frequency range 100 Hz ~ 10 kHz; output type Analog).
FAQ

How can I request a quote for 3SM122KZT1VA?
Send the part number (3SM122KZT1VA), quantity, target delivery date, and any required packaging or documentation.

Who is the manufacturer/brand for 3SM122KZT1VA?
3S (Solid State System)

What is the SNR of 3SM122KZT1VA?
64dB

What is the supply current of 3SM122KZT1VA?
80 µA

Application Scenarios
3S (Solid State System) 3SM122KZT1VA is listed under the Microphones category and is commonly used when correctness, reliability, and qualification repeatability matter. Engineers focus on SNR, frequency response, EMI immunity, and mechanical acoustics so performance holds in real rooms and enclosures. They support features such as voice triggering, beamforming, or loud alarm signaling where clarity matters. In automotive cabins, audio circuits tolerate vibration and temperature cycling while supporting hands-free calls and ANC. In industrial alarms, buzzers and sirens must deliver clear SPL on noisy factory floors with high duty-cycle reliability. In smart home devices, audio and voice processing works near radios and switching supplies, so EMI immunity is crucial. Overall, it supports long-term maintainability by using clear selection criteria and repeatable validation practices.
