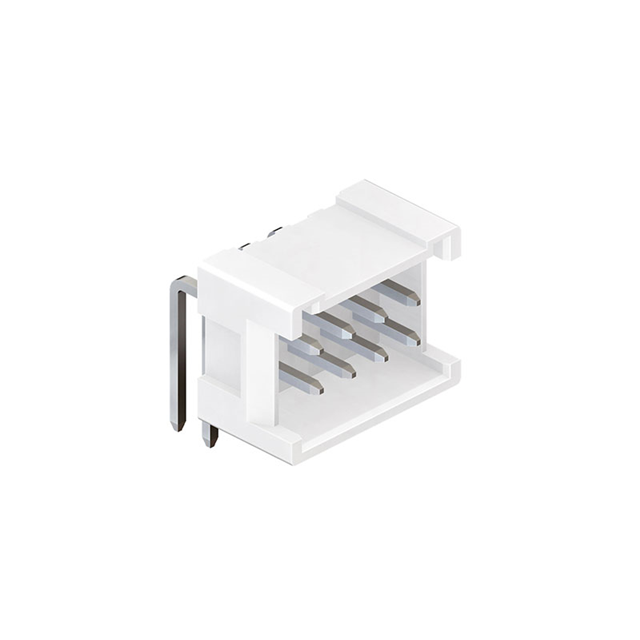

53025-08-0200-01

Product Detailed Parameters

• Description：WIRE-TO BOARD HEADER, 2.5MM, 8 C
• Series：-
• Mfr：CNC Tech
• Package：Tube
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.098" (2.50mm)
• Number of Positions：8
• Number of Rows：2
• Row Spacing - Mating：0.098" (2.50mm)
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Locking Ramp
• Contact Length - Mating：-
• Contact Length - Post：0.138" (3.50mm)
• Overall Contact Length：-
• Insulation Height：0.394" (10.00mm)
• Contact Shape：Square
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：-
• Contact Finish - Post：Tin
• Contact Material：Brass
• Insulation Material：Polyamide (PA66), Nylon 6/6, Glass Filled
• Features：-
• Operating Temperature：-25°C ~ 85°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：White
• Current Rating (Amps)：3A (AC/DC)
• Voltage Rating：250VAC/DC
