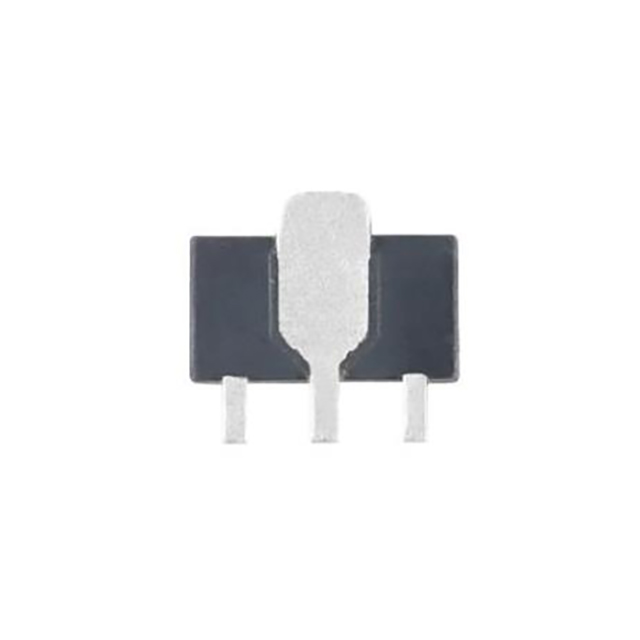

78L05

Product Detailed Parameters

• Description：IC REG LINEAR 5V 100MA SOT89
• Series：78Lxx
• Mfr：UMW
• Package：Tape & Reel (TR),Cut Tape (CT)
• Output Configuration：Positive
• Output Type：Fixed
• Number of Regulators：1
• Voltage - Input (Max)：30V
• Voltage - Output (Min/Fixed)：5V
• Voltage - Output (Max)：-
• Voltage Dropout (Max)：1.7V @ 40mA
• Current - Output：100mA
• Current - Quiescent (Iq)：5.5 mA
• Current - Supply (Max)：-
• PSRR：49dB (120Hz)
• Control Features：-
• Protection Features：Over Current, Over Temperature, Short Circuit
• Operating Temperature：-20°C ~ 120°C (TJ)
• Mounting Type：Surface Mount
• Package / Case：TO-243AA
• Supplier Device Package：SOT-89
• Grade：-
• Qualification：-
