92-0235

Product Detailed Parameters

• Description：IGBT 430V 20A TO-220AB
• Series：-
• Mfr：Infineon Technologies
• Package：Tube
• IGBT Type：-
• Voltage - Collector Emitter Breakdown (Max)：430 V
• Current - Collector (Ic) (Max)：20 A
• Current - Collector Pulsed (Icm)：-
• Vce(on) (Max) @ Vge, Ic：1.75V @ 5V, 14A
• Power - Max：125 W
• Switching Energy：-
• Input Type：Logic
• Gate Charge：27 nC
• Td (on/off) @ 25°C：900ns/6µs
• Test Condition：-
• Reverse Recovery Time (trr)：-
• Operating Temperature：-40°C ~ 175°C (TJ)
• Mounting Type：Through Hole

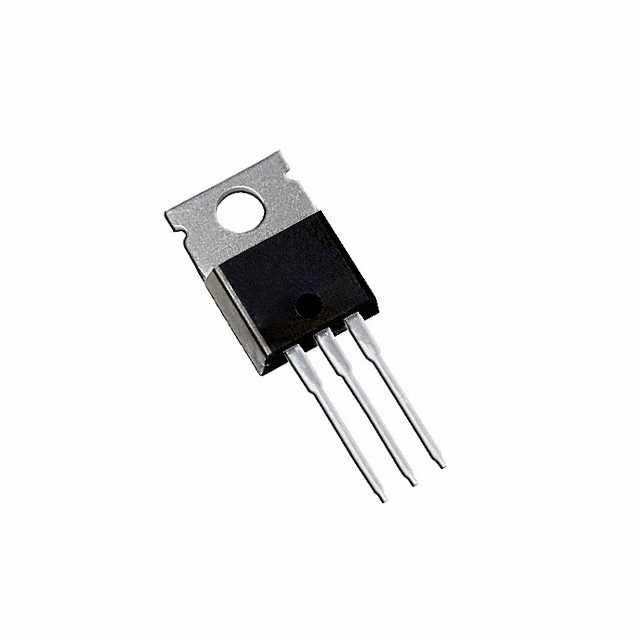

• Package / Case：TO-220-3
• Supplier Device Package：TO-220AB
• Grade：-
• Qualification：-
