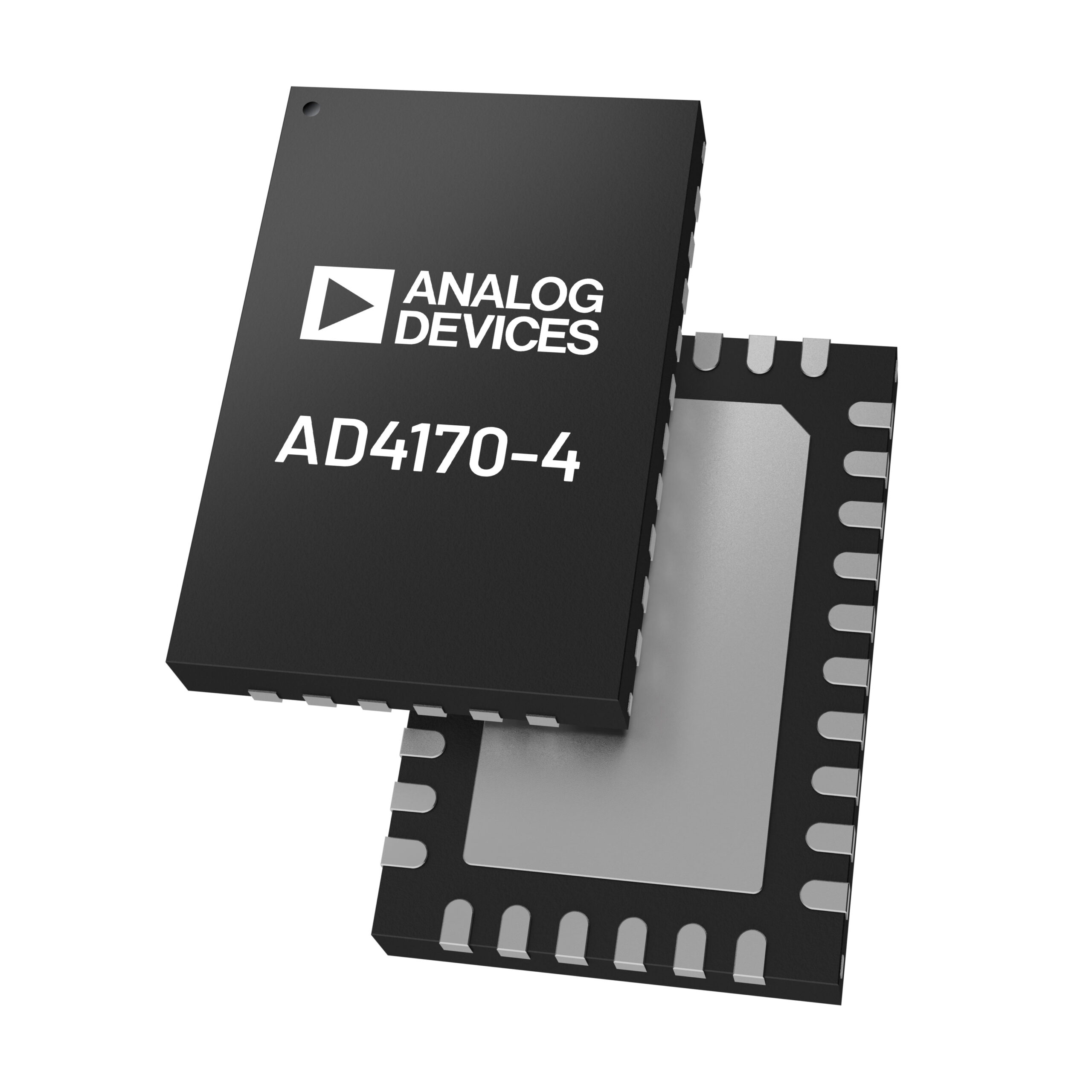

AD4170-4BCPZ-RL7

Product Detailed Parameters

• Description：DC TO 50KHZ INPUT BW 4/8 CH - AD
• Series：-
• Mfr：Analog Devices Inc.
• Package：Tape & Reel (TR)
• Number of Bits：24
• Sampling Rate (Per Second)：500k
• Number of Inputs：8
• Input Type：Differential, Pseudo-Differential, Single Ended
• Data Interface：3-Wire Serial, 4-Wire Serial, DSP, MICROWIRE, QSPI, SPI
• Configuration：MUX-PGA-ADC
• Ratio - S/H:ADC：0:01
• Number of A/D Converters：1
• Architecture：Sigma-Delta
• Reference Type：External, Internal
• Voltage - Supply, Analog：4.75V ~ 5.25V, ±2.5V
• Voltage - Supply, Digital：1.7V ~ 5.25V
• Features：PGA, Simultaneous Sampling, Temperature Sensor
• Operating Temperature：-40°C ~ 105°C
• Package / Case：32-WFQFN Exposed Pad, CSP
• Supplier Device Package：32-LFCSP (4x6)
• Mounting Type：Surface Mount
• Grade：-
• Qualification：-
