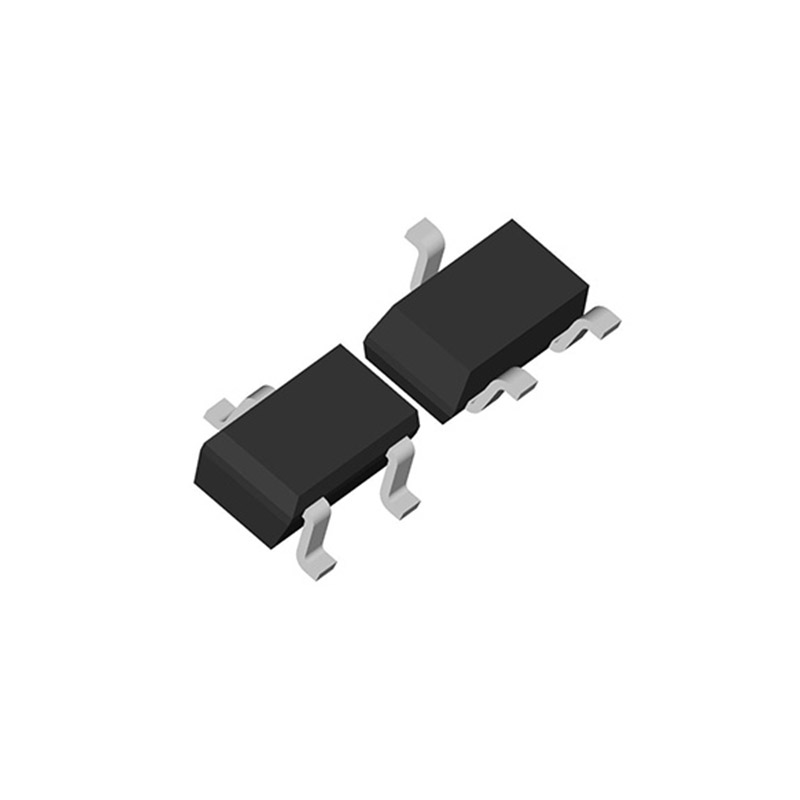

AM2305PE

Product Detailed Parameters

• Description：MOSFET P-CH 20V 4.5A SOT-23
• Series：-
• Mfr：Analog Power Inc.
• Package：Bulk
• FET Type：P-Channel
• Technology：MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss)：20 V
• Current - Continuous Drain (Id) @ 25°C：4.5A (Ta)
• Drive Voltage (Max Rds On, Min Rds On)：1.8V, 4.5V
• Rds On (Max) @ Id, Vgs：43mOhm @ 3.7A, 4.5V
• Vgs(th) (Max) @ Id：400mV @ 250µA
• Gate Charge (Qg) (Max) @ Vgs：11 nC @ 4.5 V
• Vgs (Max)：±8V
• Input Capacitance (Ciss) (Max) @ Vds：697 pF @ 15 V
• FET Feature：-
• Power Dissipation (Max)：1.3W (Ta)
• Operating Temperature：-55°C ~ 150°C (TJ)
• Grade：-
• Qualification：-
• Mounting Type：Surface Mount
• Supplier Device Package：SOT-23
• Package / Case：TO-236-3, SC-59, SOT-23-3
