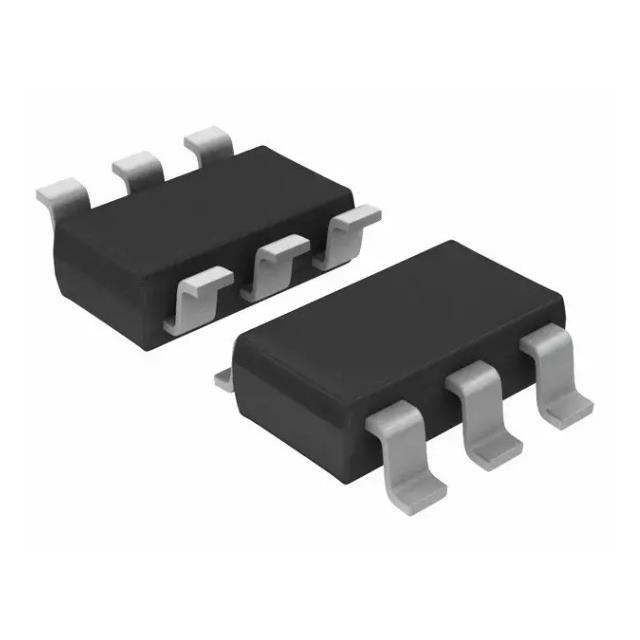

AM3418N

Product Detailed Parameters

• Description：MOSFET N-CH 20V 12A TSOP-6
• Series：-
• Mfr：Analog Power Inc.
• Package：Bulk
• FET Type：N-Channel
• Technology：MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss)：20 V
• Current - Continuous Drain (Id) @ 25°C：12A (Ta)
• Drive Voltage (Max Rds On, Min Rds On)：1.8V, 4.5V
• Rds On (Max) @ Id, Vgs：9mOhm @ 6A, 4.5V
• Vgs(th) (Max) @ Id：400mV @ 250µA
• Gate Charge (Qg) (Max) @ Vgs：32 nC @ 4.5 V
• Vgs (Max)：±8V
• Input Capacitance (Ciss) (Max) @ Vds：2029 pF @ 15 V
• FET Feature：-
• Power Dissipation (Max)：2W (Ta)
• Operating Temperature：-55°C ~ 150°C (TJ)
• Grade：-
• Qualification：-
• Mounting Type：Surface Mount
• Supplier Device Package：6-TSOP
• Package / Case：SOT-23-6
