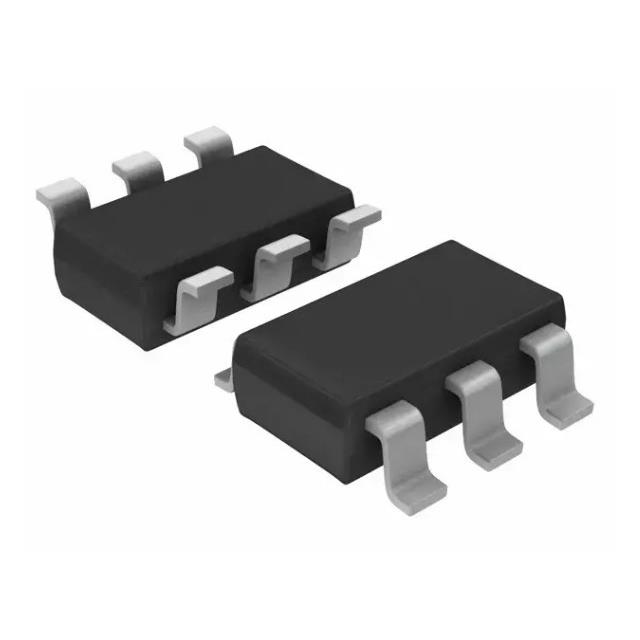

AM3531C

Product Detailed Parameters

• Description：MOSFET N/P-CH 30V TSOP-6
• Series：-
• Mfr：Analog Power Inc.
• Package：Bulk
• Technology：MOSFET (Metal Oxide)
• Configuration：N and P-Channel
• FET Feature：-
• Drain to Source Voltage (Vdss)：30V
• Current - Continuous Drain (Id) @ 25°C：3.7A (Ta), 2.7A (Ta)
• Rds On (Max) @ Id, Vgs：58mOhm @ 2A, 4.5V, 112mOhm @ 2A, 4.5V
• Vgs(th) (Max) @ Id：500mV @ 250µA
• Gate Charge (Qg) (Max) @ Vgs：8.7nC @ 4.5V, 9.3nC @ 4.5V
• Input Capacitance (Ciss) (Max) @ Vds：641pF @ 15V, 630pF @ 15V
• Power - Max：1.15W (Ta)
• Operating Temperature：-55°C ~ 150°C (TJ)
• Mounting Type：Surface Mount
• Package / Case：SOT-23-6 Thin, TSOT-23-6
• Supplier Device Package：6-TSOP
• Grade：-
• Qualification：-
