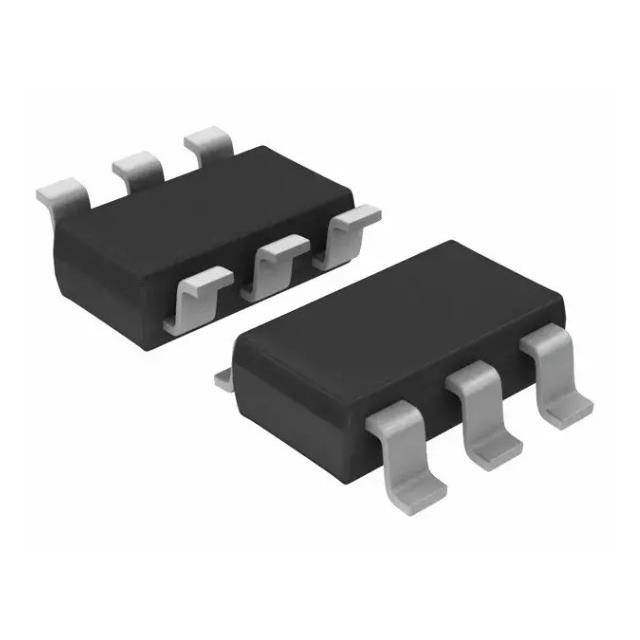

AM3816N

Product Detailed Parameters

• Description：MOSFET 2N-CH 20V 5.3A 6TSOP
• Series：-
• Mfr：Analog Power Inc.
• Package：Bulk
• Technology：MOSFET (Metal Oxide)
• Configuration：2 N-Channel
• FET Feature：-
• Drain to Source Voltage (Vdss)：20V
• Current - Continuous Drain (Id) @ 25°C：5.3A (Ta)
• Rds On (Max) @ Id, Vgs：30mOhm @ 5.3A, 4.5V
• Vgs(th) (Max) @ Id：400mV @ 250µA
• Gate Charge (Qg) (Max) @ Vgs：12nC @ 4.5V
• Input Capacitance (Ciss) (Max) @ Vds：727pF @ 15V
• Power - Max：1.25W (Ta)
• Operating Temperature：-55°C ~ 150°C (TJ)
• Mounting Type：Surface Mount
• Package / Case：SOT-23-6 Thin, TSOT-23-6
• Supplier Device Package：6-TSOP
• Grade：-
• Qualification：-
