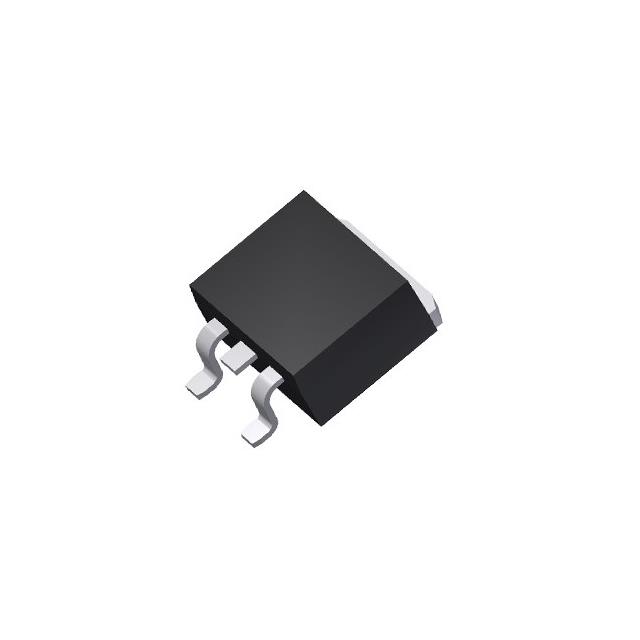

AM90N10-07B

Product Detailed Parameters

• Description：MOSFET N-CH 100V 90A TO-263
• Series：-
• Mfr：Analog Power Inc.
• Package：Bulk
• FET Type：N-Channel
• Technology：MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss)：100 V
• Current - Continuous Drain (Id) @ 25°C：90A (Tc)
• Drive Voltage (Max Rds On, Min Rds On)：5.5V, 10V
• Rds On (Max) @ Id, Vgs：7mOhm @ 45A, 10V
• Vgs(th) (Max) @ Id：1V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs：114 nC @ 5.5 V
• Vgs (Max)：±20V
• Input Capacitance (Ciss) (Max) @ Vds：9235 pF @ 15 V
• FET Feature：-
• Power Dissipation (Max)：300W (Tc)
• Operating Temperature：-55°C ~ 175°C (TJ)
• Grade：-
• Qualification：-
• Mounting Type：Surface Mount
• Supplier Device Package：TO-263
• Package / Case：TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
