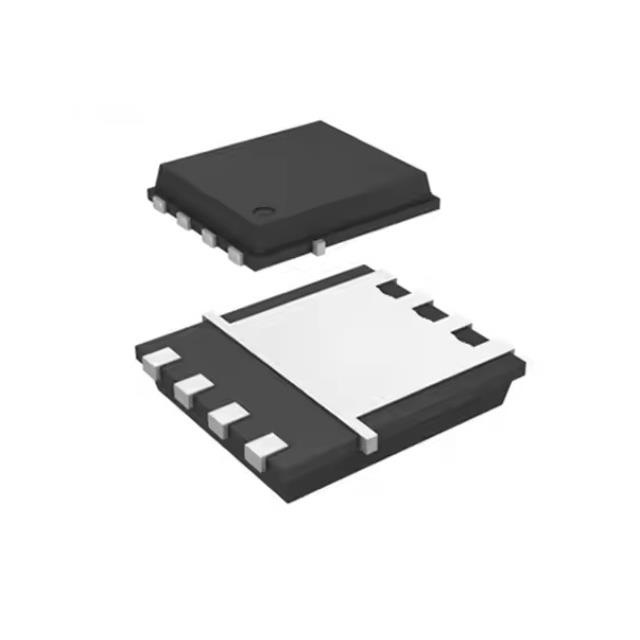

AMRA10N

Product Detailed Parameters

• Description：MOSFET N-CH 100V 62.7A DFN5X6
• Series：-
• Mfr：Analog Power Inc.
• Package：Bulk
• FET Type：N-Channel
• Technology：MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss)：100 V
• Current - Continuous Drain (Id) @ 25°C：12.4A (Ta), 62.7A (Tc)
• Drive Voltage (Max Rds On, Min Rds On)：6.5V, 10V
• Rds On (Max) @ Id, Vgs：11mOhm @ 12A, 10V
• Vgs(th) (Max) @ Id：1V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs：21 nC @ 6.5 V
• Vgs (Max)：±20V
• Input Capacitance (Ciss) (Max) @ Vds：1248 pF @ 50 V
• FET Feature：-
• Power Dissipation (Max)：2.5W (Ta), 64.8W (Tc)
• Operating Temperature：-55°C ~ 150°C (TJ)
• Grade：-
• Qualification：-
• Mounting Type：Surface Mount
• Supplier Device Package：8-DFN (5x6)
• Package / Case：8-PowerVDFN
