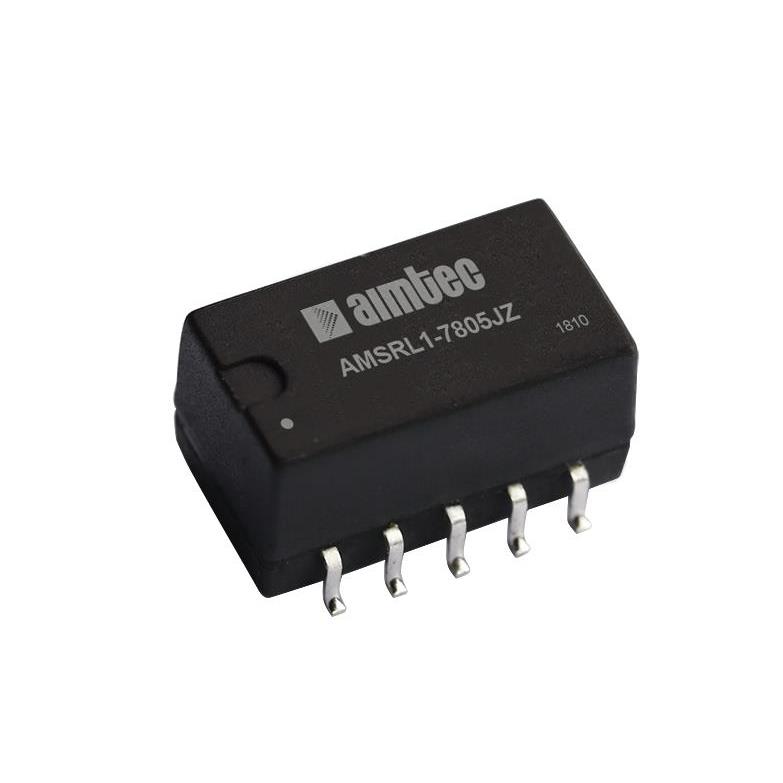

AMSRL1-7805JZ

Product Detailed Parameters

• Description：DC DC CONVERTER 5V 5W
• Series：AMSRL1-78JZ
• Mfr：aimtec
• Package：Tube
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：8V
• Voltage - Input (Max)：36V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1A
• Power (Watts)：5 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：85%
• Mounting Type：Surface Mount
• Package / Case：10-SMD Module, 7 Leads
• Size / Dimension：0.60" L x 0.34" W x 0.33" H (15.2mm x 8.5mm x 8.3mm)
• Supplier Device Package：SMD
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-
