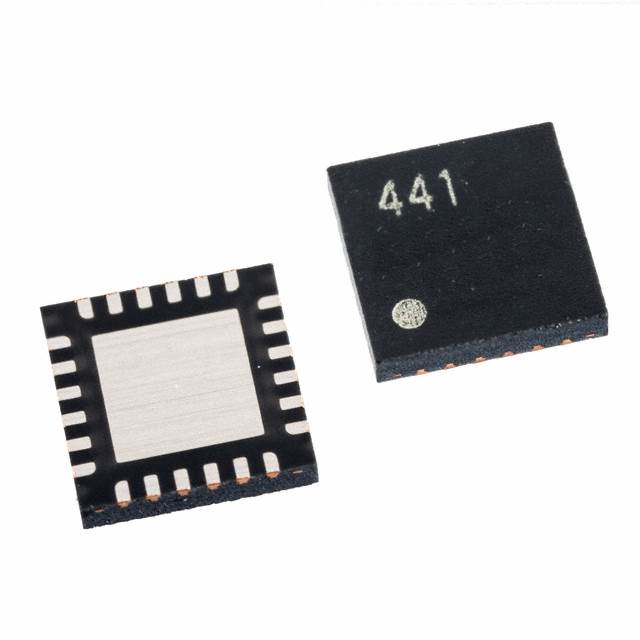

AN44142A-VB

AN44142A-VB

  • Description：IC HALF BRIDGE DRIVER 24HQFN
  • Series：-
  • Mfr：Panasonic Electronic Components
  • Package：Tape & Reel (TR)

SKU:4f571985bb0b Category: Brand:

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：839314116@qq.com
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

*
*
*
Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

Product Detailed Parameters

  • Description：IC HALF BRIDGE DRIVER 24HQFN
  • Series：-
  • Mfr：Panasonic Electronic Components
  • Package：Tape & Reel (TR)
  • Output Configuration：Half Bridge (3)
  • Applications：DC Motors, General Purpose
  • Interface：Logic
  • Load Type：Inductive
  • Technology：Power MOSFET
  • Rds On (Typ)：1Ohm
  • Current - Output / Channel：-
  • Current - Peak Output：-
  • Voltage - Supply：4.5V ~ 26.4V
  • Voltage - Load：4.5V ~ 26.4V
  • Operating Temperature：-40°C ~ 95°C (TA)
  • Features：-
  • Fault Protection：Current Limiting, Over Temperature, Over Voltage, UVLO
  • Mounting Type：Surface Mount
  • Package / Case：24-WFQFN Exposed Pad
  • Supplier Device Package：24-HQFN (4x4)
  • Grade：-
  • Qualification：-

Download product information

AN44142A-VB
