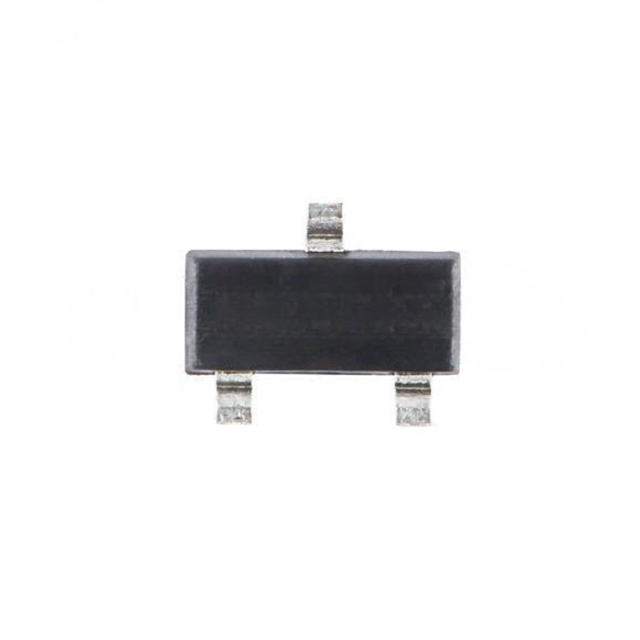

AO3403A

Product Detailed Parameters

• Description：SOT-23-3 POWER MOSFETS ROHS
• Series：UMW
• Mfr：UMW
• Package：Tape & Reel (TR),Cut Tape (CT)
• FET Type：P-Channel
• Technology：MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss)：30 V
• Current - Continuous Drain (Id) @ 25°C：2.6A (Ta)
• Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
• Rds On (Max) @ Id, Vgs：75mOhm @ 2.6A, 10V
• Vgs(th) (Max) @ Id：1.4V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs：7.2 nC @ 10 V
• Vgs (Max)：±12V
• Input Capacitance (Ciss) (Max) @ Vds：315 pF @ 15 V
• FET Feature：-
• Power Dissipation (Max)：1.4W (Ta)
• Operating Temperature：-55°C ~ 150°C (TJ)
• Grade：-
• Qualification：-
• Mounting Type：Surface Mount
• Supplier Device Package：SOT-23
• Package / Case：TO-236-3, SC-59, SOT-23-3
