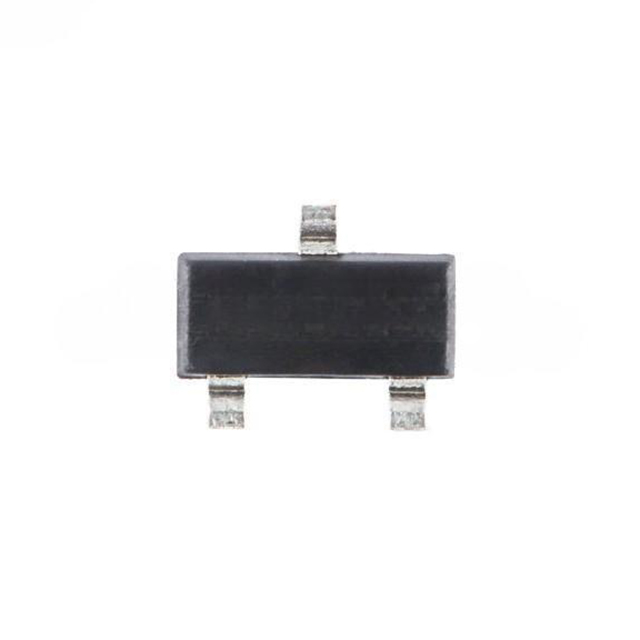

AO3423A

Product Detailed Parameters

• Description：SOT-23 POWER MOSFETS ROHS
• Series：UMW
• Mfr：UMW
• Package：Tape & Reel (TR),Cut Tape (CT)
• FET Type：P-Channel
• Technology：MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss)：20 V
• Current - Continuous Drain (Id) @ 25°C：2A (Ta)
• Drive Voltage (Max Rds On, Min Rds On)：2.5V, 4.5V
• Rds On (Max) @ Id, Vgs：120mOhm @ 2.5A, 4.5V
• Vgs(th) (Max) @ Id：1V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs：3.2 nC @ 4.5 V
• Vgs (Max)：±12V
• Input Capacitance (Ciss) (Max) @ Vds：325 pF @ 4.5 V
• FET Feature：-
• Power Dissipation (Max)：1.4W (Ta)
• Operating Temperature：150°C (TJ)
• Grade：-
• Qualification：-
• Mounting Type：Surface Mount
• Supplier Device Package：SOT-23-3L
• Package / Case：TO-236-3, SC-59, SOT-23-3
