AO7600_001

Product Detailed Parameters

• Description：MOSFET N/P-CH 20V 0.9A SC70-6
• Series：-
• Mfr：Alpha & Omega Semiconductor Inc.
• Package：Tape & Reel (TR)
• Technology：MOSFET (Metal Oxide)
• Configuration：N and P-Channel Complementary
• FET Feature：-
• Drain to Source Voltage (Vdss)：20V
• Current - Continuous Drain (Id) @ 25°C：900mA
• Rds On (Max) @ Id, Vgs：300mOhm @ 900mA, 4.5V
• Vgs(th) (Max) @ Id：900mV @ 250µA
• Gate Charge (Qg) (Max) @ Vgs：1.9nC @ 4.5V
• Input Capacitance (Ciss) (Max) @ Vds：120pF @ 10V
• Power - Max：300mW
• Operating Temperature：-55°C ~ 150°C (TJ)
• Mounting Type：Surface Mount

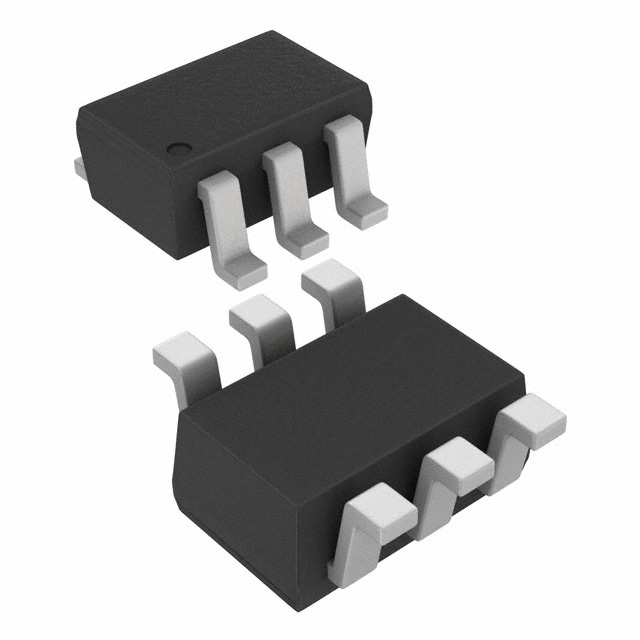

• Package / Case：6-TSSOP, SC-88, SOT-363
• Supplier Device Package：SC-70-6
• Grade：-
• Qualification：-

Download product information
